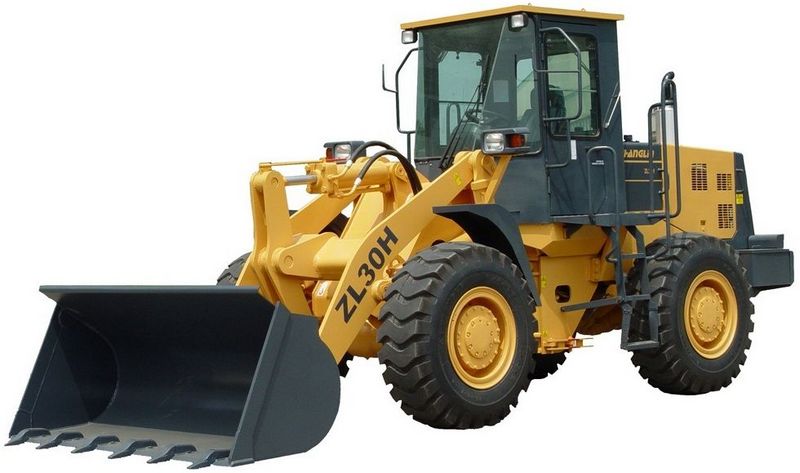

Changlin ZL30H
Browse All Changlin or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.36 ft in (2850 mm) |
| Bucket Capacity - Heaped | 2.23 yd3 (1.7 m3) |
| Breakout Force | 21581.66 lb (96 kN) |
Dimensions
| Ground Clearance | 1.22 ft in (370 mm) |
| Length With Bucket On Ground | 22.52 ft in (6863 mm) |
| Height To Top Of Cab | 10.24 ft in (3120 mm) |
| Wheelbase | 9.03 ft in (2750 mm) |
| Reach At Max Lift And Dump | 3.38 ft in (1030 mm) |
Engine
| Engine Make | 2301 |
| Engine Model | Cummins 65.9 |
| Net Power | 116.7 hp (87 kw) |
Operational
| Operating Weight | 22487.2 lb (10200 kg) |
| Fuel Capacity | 34.4 gal (130 L) |
| Tire Size | 17.5-25-12PR |
Transmission
| Transmission Type | torque converter |
| Max Speed - Forward | 21.8 mph (35 km/h) |
| Max Speed - Reverse | 22.4 mph (36 km/h) |
