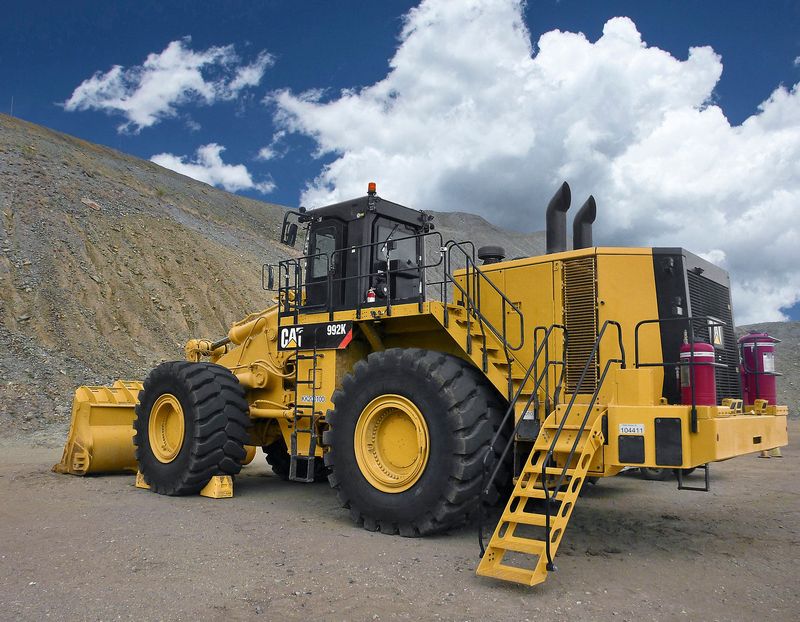

Caterpillar 992K
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 15.12 ft in (4607 mm) |
| Bucket Capacity - Heaped | 16 yd3 (12.24 m3) |
| Bucket Capacity - Struck | 14 yd3 (10.71 m3) |
| Breakout Force | 128895 lb (573.36 kN) |
| Bucket Width | 15.83 ft in (4824 mm) |
Dimensions
| Ground Clearance | 2.25 ft in (682.76 mm) |
| Length With Bucket On Ground | 51.63 ft in (15736 mm) |
| Width Over Tires | 18.05 ft in (5499 mm) |
| Height To Top Of Cab | 18.63 ft in (5678.43 mm) |
| Wheelbase | 19.32 ft in (5888.74 mm) |
| Reach At Max Lift And Dump | 7.64 ft in (2326 mm) |
Dimensions*
| Ground Clearance | 2.25 ft in (0.69 m) |
| Bumper Clearance | 3.86 ft in (1.18 m) |
| Height - Top Of Rops/Fops | 18.63 ft in (5.68 m) |
| Wheel Base Length | 19.32 ft in (5.89 m) |
| Height - Top Of Hood | 17.22 ft in (5.25 m) |
Engine
| Number Of Cylinders | 12 |
| Engine Make | 2236 |
| Engine Model | C32 ACERT |
| Net Power | 801 hp (597.4 kw) |
| Gross Power | 904 hp (674.2 kw) |
| Power Measured @ | 1750 rpm |
| Displacement | 8.5 cu in (0.2 L) |
| Bore | 5.7 in (144.8 mm) |
| Stroke | 6.4 in (162.6 mm) |
| Emissions | U.S. EPA Tier 4 Final |
| Gross Power - Sae J1995 | 904 hp (674.2 kw) |
| Engine Model | Cat C32 with ACERT Technology |
| Gross Power*** | 900 hp (671.2 kw) |
| Net Power*** | 814 hp (607 kw) |
| Emissions (U.S. Epa Tier 4 Final): Gross Power - Sae J1995 | 900 hp (671.2 kw) |
| Emissions (Tier 2 Equivalent): Net Power - Sae J1349 | 814 hp (607 kw) |
| Emissions (U.S. Epa Tier 4 Final): Net Power - Sae J1995 | 814 hp (607 kw) |
| Emissions (U.S. Epa Tier 4 Final): Peak Torque At 1,200 Rpm - Sae J1995 | 4765 rpm |
| Emissions (Tier 2 Equivalent): Gross Power - Sae J1995 | 907 hp (676.4 kw) |
| Emissions (Tier 2 Equivalent): Gross Power - Iso 14396 | 884 hp (659.2 kw) |
| Emissions (Tier 2 Equivalent): Rated Speed | 1750 rpm |
| Emissions (Tier 2 Equivalent): Net Power - Sae J1995 | 814 hp (607 kw) |
| Emissions (Tier 2 Equivalent): Peak Torque At 1,200 Rpm - Sae J1995 | 4796 rpm |
| Note (Tier 4 Final) (1) | These ratings apply at 1,750 rpm when tested under the specified standard conditions. |
| Note (Tier 4 Final) (2) | Rating for net power advertised is based on power available when the engine is equipped with alternator, air cleaner, muffler, and on-demand hydraulic fan drive at maximum fan speed. |
| Note (Tier 2 Equivalent) (1) | These ratings apply at 1,750 rpm when tested under the specified standard conditions. |
| Note (Tier 2 Equivalent) (2) | Rating for net power advertised is based on power available when the engine is equipped with alternator, air cleaner, muffler, and on-demand hydraulic fan drive at maximum fan speed. |
| Emissions (U.S. Epa Tier 4 Final): Net Power - Sae J1349 | 814 hp (607 kw) |
| Emissions (U.S. Epa Tier 4 Final): Gross Power - Iso 14396 | 884 hp (659.2 kw) |
| Emissions (U.S. Epa Tier 4 Final): Rated Speed | 1750 rpm |
Operational
| Operating Weight | 214948 lb (97498.8 kg) |
| Fuel Capacity | 413 gal (1563.4 L) |
| Engine Oil Fluid Capacity | 32 gal (120 L) |
| Cooling System Fluid Capacity | 77 gal (291.5 L) |
| Transmission Fluid Capacity | 45 gal (120 L) |
| Front Axle/Diff Fluid Capacity | 95 gal (359.7 L) |
| Rear Axle/Diff Fluid Capacity | 91 gal (344.5 L) |
| Static Tipping Weight | 113449.9 lb (51460 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 150 amps |
| Tire Size | 45/65 45 |
Transmission
| Transmission Type | Cat Planetary Power Shift |
| Transmission Type | Planetary, powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 12.8 mph (20.6 km/h) |
| Max Speed - Reverse | 13.9 mph (22.4 km/h) |
| Forward - 1 | 4.3 mph (7 km/h) |
| Forward - 2 | 7.4 mph (12 km/h) |
| Forward - 3 | 12.6 mph (20.3 km/h) |
| Reverse - 1 | 4.7 mph (7.6 km/h) |
| Reverse - 2 | 8.1 mph (13.1 km/h) |
| Direct Drive - Forward 3 | 14.2 mph (22.9 km/h) |
| Direct Drive - Reverse 3 | 15.4 mph (24.8 km/h) |
| Direct Drive - Forward 2 | 8 mph (12.9 km/h) |
| Direct Drive - Reverse 2 | 8.8 mph (14.2 km/h) |
| Converter Drive - Forward 3 | 12.8 mph (20.6 km/h) |
| Converter Drive - Reverse 3 | 13.9 mph (22.4 km/h) |
| Direct Drive - Forward 1 | Lock-up Disabled |
| Converter Drive - Forward 1 | 4.4 mph (7.1 km/h) |
| Converter Drive - Forward 2 | 7.6 mph (12.3 km/h) |
| Direct Drive - Reverse 1 | 4.9 mph (7.9 km/h) |
| Converter Drive - Reverse 1 | 4.6 mph (7.5 km/h) |
| Converter Drive - Reverse 2 | 8.1 mph (13.1 km/h) |
| Reverse - 3 | 13.8 mph (22.3 km/h) |
Tires
| Tires | Choose from a variety of tires to match your application. |
Weights
| Operating Weight - Standard Lift* | 220089 lb (99830.7 kg) |
| Operating Weight - High Lift** | 221847 lb (100628.2 kg) |
| Operating Weight - Standard Lift | 214948 lb (97498.8 kg) |
| Operating Weight - High Lift | 226249 lb (102624.9 kg) |
Buckets
| Bucket Capacities | 10.7-12.3 m3 (14-16 yd3) |
Hydraulic System
| Relief Valve Setting | 4500 psi (31026.4 kPa) |
Axles
| Front | Fixed |
| Rear | Oscillating |
| Oscillation Angle | 10 degrees , 8 degrees with Stops |
Brakes
| Brakes | Meets SAE J1473, OCT90 and ISO 3450:1992 |
Operating Specifications
| Bucket Capacity Range | 10.7-12.3 m3 (14-16 yd3) |
| Breakout Force | 128895 lb (58465.8 kg) |
| Rated Payload - High Lift | 42000 lb (19050.9 kg) |
| Rated Payload - Standard Lift | 48000 lb (21772.5 kg) |
| Operating Weight - Standard Lift* | 220089 lb (99830.7 kg) |
| Operating Weight - High Lift** | 221847 lb (100628.2 kg) |
| Operating Weight - Standard | 220089 lb (99830.7 kg) |
| Operating Weight - High Lift | 226249 lb (102624.9 kg) |
| Rated Payload - Standard (Face Material) | 52910.9 lb (24000 kg) |
| Rated Payload - High Lift (Face Material) | 46297.1 lb (21000 kg) |
| Operating Weight - Standard Lift | 214948 lb (97498.8 kg) |
Service Refill Capacities
| Cooling System | 77 gal (291.5 L) |
| Fuel Tank | 413 gal (1563.4 L) |
| Crankcase | 32 gal (121.2 L) |
| Fuel Tank - Standard | 413 gal (1563.4 L) |
| Engine Crankcase | 32 gal (121.2 L) |
| Transmission | 45 gal (170.4 L) |
| Differential - Final Drives - Front | 95 gal (359.7 L) |
| Differential - Final Drives - Rear | 91 gal (344.5 L) |
| Cooling Systems | 77 gal (291.5 L) |
| Hydraulic Tank - Implement | 86 gal (325.6 L) |
| Hydraulic Tank - Steering/Brake | 42 gal (159 L) |
| Windshield Washer Fluid | 4.9 gal (18.6 L) |
| Hydraulic System - Implement | 86 gal (325.6 L) |
| Hydraulic System - Steering | 42 gal (159 L) |
| Ac Refrigerant | 6 lb (2.8 kg) |
| Ac Oil | 0.1 gal (0.3 L) |
Hydraulic Cycle Times
| Raise | 9.4 s |
| Dump | 1.8 s |
| Lower Float Down | 3.7 s |
| Rack Back | 4.4 s |
| Total Hydraulic Cycle Time | 14.9 s |
| Lower Float Down - Empty | 3.7 s |
| Raise* | 9.4 s |
| Dump* | 1.8 s |
Hydraulic System - Lift/Tilt
| Lift/Tilt System - Circuit | Positive Flow Control |
| Lift/Tilt System - Pump | Variable Displacement Piston |
| Relief Valve Setting - Lift/Tilt | 4500 psi |
| Tilt Cylinder - Stroke | 80.9 in (2054.9 mm) |
| Lift Cylinder - Bore | 11 in (279.4 mm) |
| Lift Cylinder - Stroke | 45.2 in (1148.1 mm) |
| Tilt Cylinder - Bore | 10.5 in (266.7 mm) |
| Maximum Flow At 1,850 Rpm | 254 gal/min |
Hydraulic System - Steering
| Steering System - Circuit | Pilot, Load Sensing |
| Steering System - Pump | Piston, Variable Displacement |
| Steering Cut Off Pressure | 4500 psi |
| Steering Cycle Times - Low Idle | 6.4 s |
| Steering Cycle Times - High Idle | 4.4 s |
| Maximum Flow At 1,350 Rpm | 95 gal/min |
Cab
| Cab - Rops/Fops | Meets SAE and ISO standards. |
| Rops/Fops | Meets SAE and ISO standards |
Loader Hydraulic System
| Relief Valve Setting | 4500 psi |
| Relief Valve Setting - Low Idle | 4500 psi |
| Lift Cylinder, Double Acting - Bore | 11 in (279.4 mm) |
| Tilt Cylinder, Double Acting - Bore | 10.5 in (266.7 mm) |
| Lift Cylinder, Double Acting - Stroke | 45.2 in (1148.1 mm) |
| Tilt Cylinder, Double Acting - Stroke | 80.9 in (2054.9 mm) |
Model
| Serial Number Prefix | 880 |
Operating Specifications - High Lift*
| Breakout Force | 127813 lb (57975.1 kg) |
| Static Tipping Load - At 35 Degrees Articulation | 114760 lb (52054.3 kg) |
Operating Specifications - Standard Lift*
| Breakout Force | 123439 lb (55991 kg) |
| Static Tipping Load - At 35 Degrees Articulation | 122010 lb (55342.9 kg) |
Sound Performance
| Performance | Performance |
| Operator Sound Pressure Level | The operator sound pressure level is 70 dB(A), measured according to the test procedures and conditions specified in ISO 6396:2008 for the standard machine configuration. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
| Hearing Protection | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Machine Sound Power Level - Standard Machine Configuration | The machine sound power level is 116 dB(A), measured according to the test procedures and conditions specified in ISO 6395:2008 for the standard machine configuration. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
| Machine Sound Power Level - Sound Suppressed Machine Configuration | The machine sound power level is 113 dB(A), measured according to the test procedures and conditions specified in ISO 6395:2008 for the sound suppressed machine configuration. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. |
Dimensions - High Lift - Approximate
| Ground To Top Of Rops | 18.7 ft in (5.7 m) |
| Ground To Top Of Exhaust Stacks | 17.3 ft in (5.3 m) |
| Ground To Top Of Hood | 13.3 ft in (4.1 m) |
| Ground To Bumper Clearance | 3.9 ft in (1.2 m) |
| Rear Axle - Centerline To Bumper | 13.8 ft in (4.2 m) |
| Wheel Base | 19.4 ft in (5.9 m) |
| Maximum Overall Length | 52.9 ft in (16.1 m) |
| Ground To Lower Hitch Clearance | 2.3 ft in (0.7 m) |
| Ground To Center Of Axles | 4.5 ft in (1.4 m) |
| Rack Back Angle - Ground Level | 42.8 degrees |
| Rack Back Angle - Carry | 52.5 degrees |
| B-Pin Height - Maximum Lift | 24.6 ft in (7.5 m) |
| Maximum Overall Height - Bucket Raised | 33.1 ft in (10.1 m) |
| Dump Angle At Maximum Lift | 50 degrees |
| Reach - Maximum Lift | 6.9 ft in (2.1 m) |
| Tread Width | 10.9 ft in (3.4 m) |
| Clearance At 45 Degrees Dump (Tooth Tip) | 15.1 ft in (4.6 m) |
| Rack Back Angle - Maximum Lift | 65 degrees |
Dimensions - Standard Lift - Approximate
| Ground To Top Of Rops | 18.7 ft in (5.7 m) |
| Ground To Top Of Exhaust Stacks | 17.3 ft in (5.3 m) |
| Ground To Top Of Hood | 13.3 ft in (4.1 m) |
| Ground To Bumper Clearance | 3.9 ft in (1.2 m) |
| Rear Axle - Centerline To Bumper | 13.8 ft in (4.2 m) |
| Wheel Base | 19.4 ft in (5.9 m) |
| Maximum Overall Length | 52 ft in (15.9 m) |
| Ground To Lower Hitch Clearance | 2.3 ft in (0.7 m) |
| Ground To Center Of Axles | 4.5 ft in (1.4 m) |
| Rack Back Angle - Ground Level | 43.4 degrees |
| Rack Back Angle - Carry | 52.7 degrees |
| B-Pin Height - Maximum Lift | 22.8 ft in (7 m) |
| Maximum Overall Height - Bucket Raised | 30.5 ft in (9.3 m) |
| Dump Angle At Maximum Lift | 50 degrees |
| Reach - Maximum Lift | 7 ft in (2.2 m) |
| Tread Width | 10.9 ft in (3.4 m) |
| Clearance At 50 Degrees Dump (Tooth Tip) | 14.7 ft in (4.5 m) |
| Rack Back Angle - Maximum Lift | 65 degrees |
Operating Specifications - High Lift
| Static Tipping Load - At 35 Degrees Articulation | 96853 lb (43931.8 kg) |
| Breakout Force | 129777 lb (58865.9 kg) |
Operating Specifications - Standard Lift
| Static Tipping Load - At 35 Degrees Articulation | 113159 lb (51328.1 kg) |
| Standard Lift Breakout Force | 128895 lb (58465.8 kg) |
| High Lift Breakout Force | 127775 lb (57957.8 kg) |
| Breakout Force | 128895 lb (58465.8 kg) |
