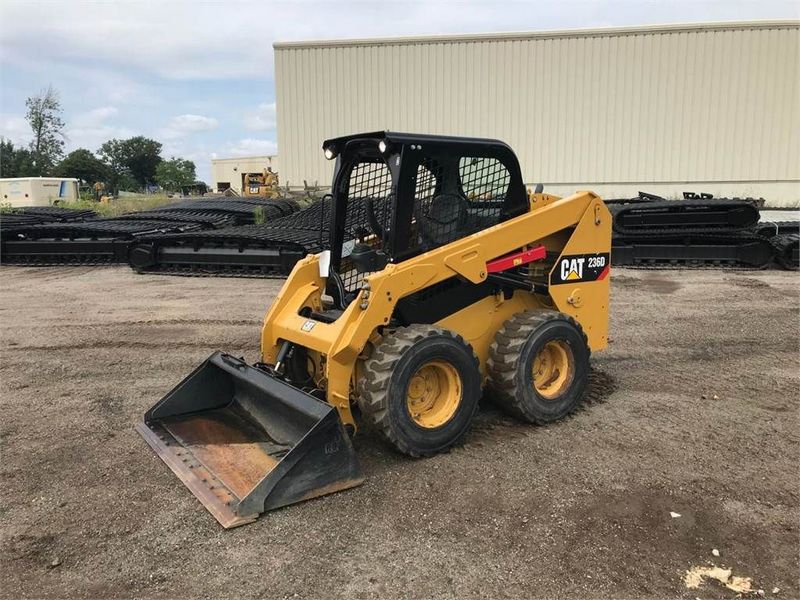

Caterpillar 236
Browse All Caterpillar or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.8 ft in (3596 mm) |
| Width Over Tires | 6.01 ft in (1829 mm) |
| Ground Clearance | 9 in (228.6 mm) |
| Height To Top Of Cab | 6.87 ft in (2092 mm) |
| Wheelbase | 3.73 ft in (1134 mm) |
| Length W/O Bucket | 9.19 ft in (2800 mm) |
| Clearance At Max Lift And Dump | 7.87 ft in (2398 mm) |
| Reach At Max Lift And Dump | 23.12 in (587 mm) |
| Wheel Base | 3.73 ft in (0.1 m) |
| Bucket Pin Height - Carry Position | 10 in (254 mm) |
| Clearance At Maximum Lift And Dump | 94 in (2387.6 mm) |
| Length - Without Bucket | 110 in (2794 mm) |
| Bucket Pin Height - Maximum Lift | 10.17 ft in (0.26 m) |
| Maximum Overall Height | 156 in (3962.4 mm) |
| Height - Top Of Cab | 6.84 ft in (0.18 m) |
| Bumper Overhang - Rear Axle | 41 in (1041.41 mm) |
| Reach - Maximum Lift/Dump | 21 in (533.4 mm) |
| Turning Radius From Center - Inc Bucket | 85.24 in (2165 mm) |
| Length - With Bucket On Ground | 138 in (3505.2 mm) |
| Vehicle Width Over Tires | 66 in (1676.4 mm) |
Operating Specifications
| Breakout Force - Tilt Cylinder | 5255 lb (2383.63 kg) |
| Breakout Force - Lift Cylinder | 4344 lb (1970.41 kg) |
| Rated Operating Capacity | 1750 lb (793.79 kg) |
| Rated Operating Capacity With Optional Counterweight | 1850 lb (839.15 kg) |
| Tipping Load | 3500 lb (1587.58 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | 3034 |
| Gross Power | 63 hp (47 kw) |
| Net Power | 59 hp (44 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 183 cu in (3 L) |
| Bore | 3.9 in (97.1 mm) |
| Stroke | 4 in (100.1 mm) |
| Engine Model | Cat 3034C |
| Net Flywheel Power | 44 hp (32.9 kw) |
Operational
| Operational Weight | 7030 lb (3188.8 kg) |
| Fuel Capacity | 23.8 gal (90 L) |
| Max Speed | 6.9 mph (11.1 km/h) |
| Hydraulic System Fluid Capacity | 13.8 gal (52 L) |
| Operating Speed | 7.6 mph (12.1 km/h) |
Loader
| Operating Load Rating | 1750 lb (793.8 kg) |
| Tipping Angle | 3440 degrees |
| Bucket Capacity | 0.6 yd3 (0.4 m3) |
Weights
| Operating Weight | 6810 lb (3089 kg) |
Hydraulic
| Pump Flow Capacity | 22 gal/min (83 L/min) |
Hydraulic System
| Loader Hydraulic Pressure | 3300 psi |
| Loader Hydraulic Flow | 22 gal/min |
| Hydraulic Flow | Standard flow |
Service Refill Capacities
| Cooling System | 2.6 gal (9.9 L) |
| Fuel Tank | 23.8 gal (90.1 L) |
| Hydraulic Tank | 9.2 gal (34.9 L) |
| Engine Crankcase | 1.8 gal (6.9 L) |
| Hydraulic System | 13.7 gal (51.9 L) |
| Chain Box - Each Side | 2 gal (7.6 L) |
Cab
| Rops | SAE J1040 MAY94 and ISO3471:1994 |
| Fops | SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I |
| Fops Level Ii | SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional) |
