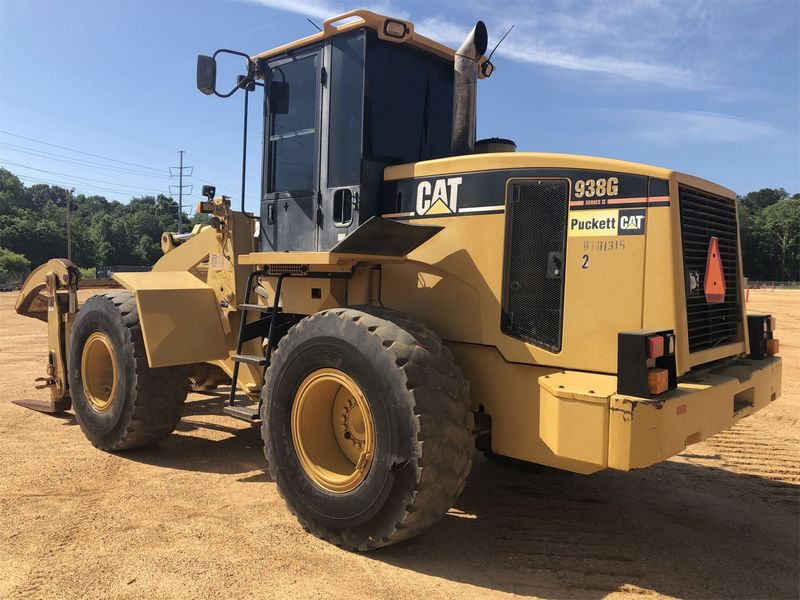

Caterpillar 938G Series II
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.48 ft in (2889 mm) |
| Bucket Capacity - Heaped | 3.01 yd3 (2.3 m3) |
| Bucket Capacity - Struck | 2.62 yd3 (2 m3) |
| Bucket Width | 8.88 ft in (2706 mm) |
| Breakout Force | 28325.93 lb (126 kN) |
Dimensions
| Ground Clearance | 1.35 ft in (409 mm) |
| Length With Bucket On Ground | 23.56 ft in (7181 mm) |
| Width Over Tires | 8.37 ft in (2550 mm) |
| Height To Top Of Cab | 10.86 ft in (3309 mm) |
| Wheelbase | 9.91 ft in (3020 mm) |
| Hinge Pin - Max Height | 12.61 ft in (3843 mm) |
| Reach At Max Lift And Dump | 3.21 ft in (977 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3126B HEUI |
| Gross Power | 179.7 hp (134 kw) |
| Max Torque | 618.9 lb ft (839 Nm) |
| Displacement | 439.4 cu in (7.2 L) |
| Aspiration | turbocharged |
| Torque Rise | 62 % |
Operational
| Operating Weight | 30818.5 lb (13979 kg) |
| Fuel Capacity | 67.1 gal (254 L) |
| Hydraulic System Fluid Capacity | 23.8 gal (90 L) |
| Engine Oil Fluid Capacity | 8.2 gal (31 L) |
| Cooling System Fluid Capacity | 12.7 gal (48 L) |
| Transmission Fluid Capacity | 8 gal (30 L) |
| Front Axle/Diff Fluid Capacity | 8 gal (30 L) |
| Rear Axle/Diff Fluid Capacity | 8.5 gal (32 L) |
| Static Tipping Weight | 25229.8 lb (11444 kg) |
| Turning Radius | 19.6 ft in (5955 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20.5R25 |
Transmission
| Transmission Type | electronic planetary powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.2 mph (38.8 km/h) |
| Max Speed - Reverse | 14.5 mph (23.3 km/h) |
Hydraulic System
| Relief Valve Setting | 3597 psi (24800 kPa) |
| Pump Flow Capacity | 43.1 gal/min (163 L/min) |
| Raise Time | 6 sec |
| Dump Time | 1.4 sec |
| Lower Time | 2.8 sec |
| Pump Type | vane type |
