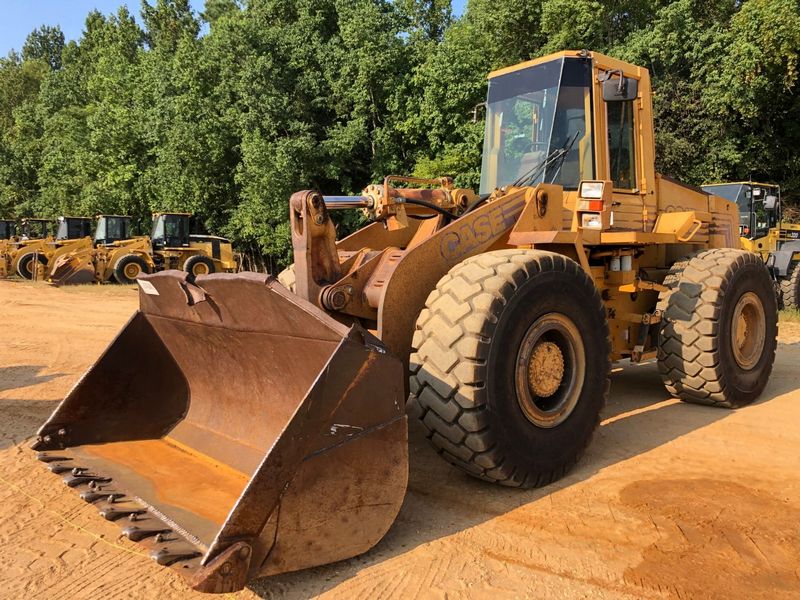

Case 821B
Browse All Case or Wheel Loader Models
Contents:
Bucket
| Bucket Capacity - Heaped | 3.54 yd3 (2.7 m3) |
| Bucket Capacity - Struck | 3.01 yd3 (2.3 m3) |
| Bucket Width | 9.09 ft in (2770 mm) |
| Breakout Force | 37109.21 lb (165.07 kN) |
Dimensions
| Ground Clearance | 1.32 ft in (401 mm) |
| Length With Bucket On Ground | 24.51 ft in (7470 mm) |
| Width Over Tires | 8.86 ft in (2700 mm) |
| Height To Top Of Cab | 10.93 ft in (3330 mm) |
| Wheelbase | 10.47 ft in (3190 mm) |
| Hinge Pin - Max Height | 12.96 ft in (3950 mm) |
Engine
| Number Of Cylinders | 6 |
| Max Torque Iso Tr14396 | 591.6 lb ft (802 Nm) |
| Engine Model | 6T-830 |
| Engine Type | 4 stroke Direct injection |
| Net Power | 185.1 hp (138 kw) |
| Gross Power | 198.5 hp (148 kw) |
| Power Measured @ | 2000 rpm |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
| Bore | 4.5 in (114 mm) |
| Stroke | 5.4 in (135 mm) |
Operational
| Operating Weight | 37039.9 lb (16801 kg) |
| Fuel Capacity | 70.8 gal (268 L) |
| Engine Oil Fluid Capacity | 5.5 gal (20.8 L) |
| Cooling System Fluid Capacity | 8.5 gal (32.1 L) |
| Transmission Fluid Capacity | 7.1 gal (26.5 L) |
| Front Axle/Diff Fluid Capacity | 5.6 gal (21 L) |
| Rear Axle/Diff Fluid Capacity | 4 gal (15 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | Mechanical |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.8 mph (38.4 km/h) |
| Max Speed - Reverse | 15.5 mph (24.8 km/h) |
Hydraulic System
| Pump Flow Capacity | 79.3 gal/min (300 L/min) |
| Raise Time | 6.2 sec |
| Dump Time | 1.6 sec |
| Lower Time | 3.8 sec |
| Pump Type | Hydraulic tandem pump |
