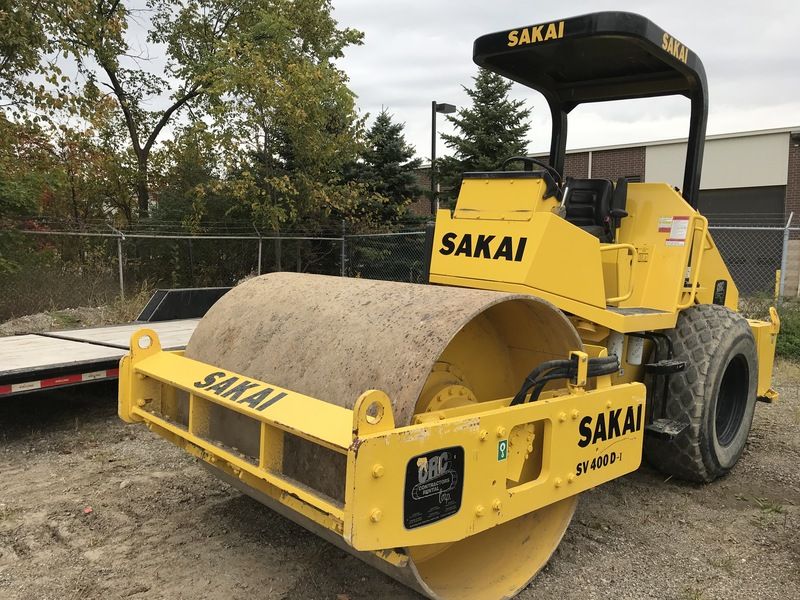

Sakai SV400D
Browse All Sakai or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 15.92 in (4850 mm) |
| Overall Width | 6.17 ft in (1880 mm) |
| Height To Top Of Cab | 9.31 ft in (2835 mm) |
| Wheelbase | 8.44 in (2570 mm) |
| Ground Clearance | 12.41 in (315 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | "A-4BG1" |
| Gross Power | 81.9 hp (61 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 264.2 cu in (4.4 L) |
Operational
| Operating Weight | 15873.3 lb (7200 kg) |
| Fuel Capacity | 47.6 gal (180 L) |
| Hydraulic System Fluid Capacity | 13.3 gal (50 L) |
| Max Speed | 6.3 mph (10 km/h) |
| Tires *If Applicable | 16.9-24-10PR (OR) |
| Operating Voltage | 24 V |
Drum
| Drum Width | 67 in (1700 mm) |
| Drum Diameter | 51.2 in (1300 mm) |
| Vibration Frequency 1 | 40 Hz |
| Vibration Frequency 2 | 30 Hz |
| Centrifugal Force - High | 26527.5 lb (118 kN) |
| Centrifugal Force - Low | 20907.3 lb (93 kN) |
