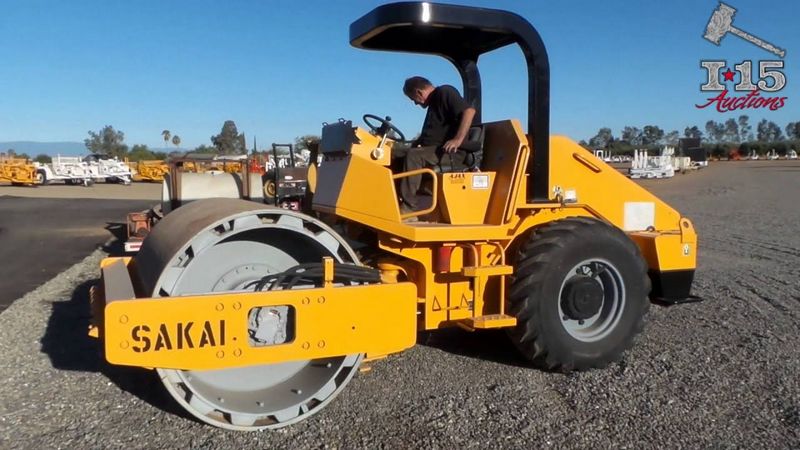

Sakai SV400TF
Browse All Sakai or Vibratory Compactor Models
Contents:
Dimensions
| Overall Length W/O Blade | 15.92 ft in (4850 mm) |
| Width Over Tires | 6.17 ft in (1880 mm) |
| Height To Top Of Cab | 9.31 ft in (2835 mm) |
| Wheelbase | 8.44 in (2570 mm) |
| Ground Clearance | 12.41 in (315 mm) |
Drum
| Drum Diameter | 55.12 in (1400 mm) |
| Vibratory Frequency 2 | 30 Hz |
| Number Of Pads | 140 |
| Centrifugal Force - Low | 23155.33 lb (103 kN) |
| Drum Width | 66.93 in (1700 mm) |
| Centrifugal Force - High | 28550.74 lb (127 kN) |
| Pad Height | 2.96 in (75 mm) |
| Vibration Frequency 1 | 40 Hz |
Engine
| Engine Make | 2353 |
| Engine Model | "A-4BG1" |
| Gross Power | 81.9 hp (61 kw) |
| Displacement | 264.2 cu in (4.4 L) |
Operational
| Operating Weight | 19290.5 lb (8750 kg) |
| Fuel Capacity | 47.6 gal (180 L) |
| Hydraulic System Fluid Capacity | 13.3 gal (50 L) |
| Max Speed | 6.3 mph (10 km/h) |
| Tires | 16.9-24-10PR(OR) |
| Operating Voltage | 24 V |
