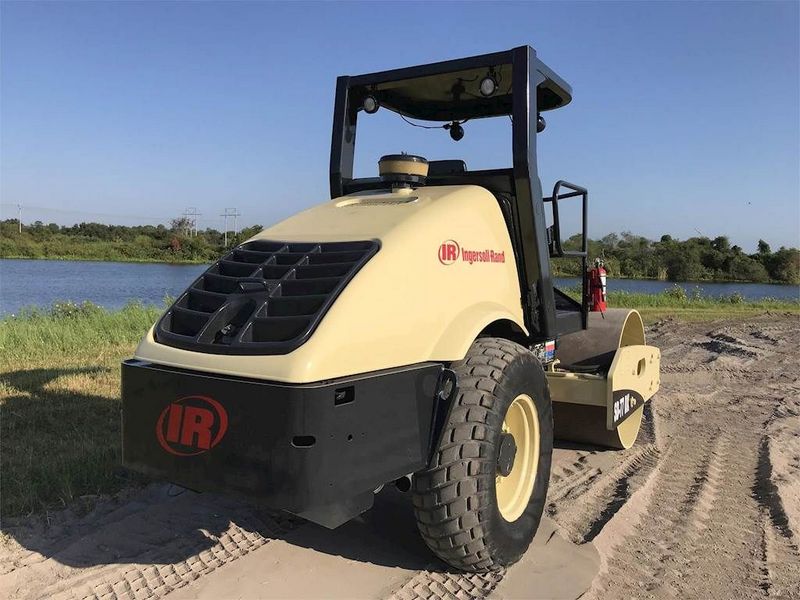

Ingersoll Rand SD77DX
Browse All Ingersoll Rand or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 16.55 in (5044 mm) |
| Overall Width | 6.17 ft in (1880 mm) |
| Height To Top Of Cab | 9.59 ft in (2922 mm) |
| Wheelbase | 8.79 in (2677 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | B4.5T Tier 2 |
| Net Power | 99 hp (73.9 kw) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 16350 lb (7416.3 kg) |
| Fuel Capacity | 47.1 gal (178 L) |
| Hydraulic System Fluid Capacity | 22.2 gal (84 L) |
| Max Speed | 9.1 mph (14.5 km/h) |
| Tires *If Applicable | 14.9x24 -6PR R3 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 105 amps |
Drum
| Drum Width | 66 in (1676 mm) |
| Drum Diameter | 48 in (1219 mm) |
| Vibration Frequency 1 | 20.4 Hz |
| Nominal Amplitude - High | 0.1 in (2 mm) |
| Vibration Frequency 2 | 33.8 Hz |
| Nominal Amplitude - Low | 0.1 in (1.2 mm) |
| Centrifugal Force - High | 32147.7 lb (143 kN) |
| Centrifugal Force - Low | 23380.2 lb (104 kN) |
