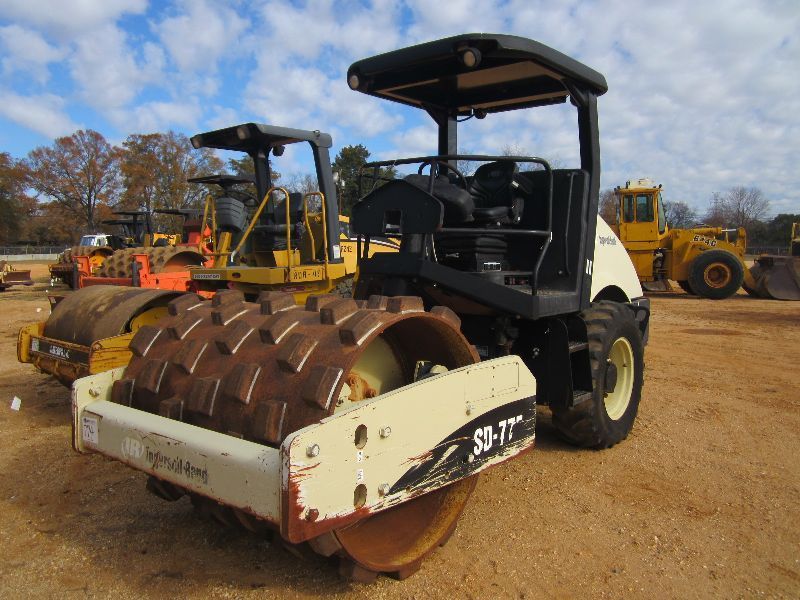

Ingersoll Rand SD77F
Browse All Ingersoll Rand or Vibratory Compactor Models
Contents:
Dimensions
| Overall Length W/O Blade | 16.55 ft in (5044 mm) |
| Width Over Tires | 6.17 ft in (1880 mm) |
| Height To Top Of Cab | 9.7 ft in (2955 mm) |
| Wheelbase | 8.79 in (2677 mm) |
Drum
| Drum Diameter | 48 in (1219 mm) |
| Centrifugal Force - High | 29899.59 lb (133 kN) |
| Pad Height | 3 in (76 mm) |
| Pad Surface Area | 21 in2 (13548.36 cm2) |
| Vibration Frequency 1 | 20.4 Hz |
| Vibratory Frequency 2 | 33.8 Hz |
| Number Of Pads | 84 |
| Centrifugal Force - Low | 29899.59 lb (133 kN) |
| Drum Width | 65.99 in (1676 mm) |
| Nominal Amplitude - High | 0.08 in (1.98 mm) |
| Nominal Amplitude - Low | 0.06 in (1.33 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | B4.5T Tier2 |
| Net Power | 99 hp (73.9 kw) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 17780 lb (8064.9 kg) |
| Fuel Capacity | 47.1 gal (178 L) |
| Hydraulic System Fluid Capacity | 22.2 gal (84 L) |
| Max Speed | 9.6 mph (15.3 km/h) |
| Tires | 14.9x24 -6PR R1 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 105 amps |
