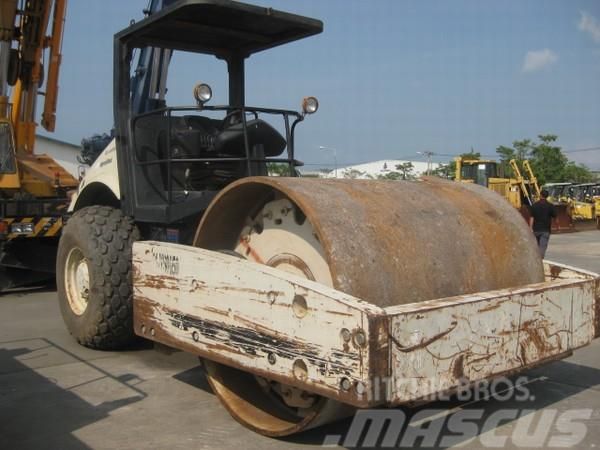

Ingersoll Rand SD200DX
Browse All Ingersoll Rand or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 20.61 in (6280 mm) |
| Overall Width | 8.16 ft in (2486 mm) |
| Height To Top Of Cab | 10.24 ft in (3120 mm) |
| Wheelbase | 10.55 in (3215 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB5.9-TAA |
| Net Power | 205 hp (152.9 kw) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 45000 lb (20411.7 kg) |
| Fuel Capacity | 68 gal (257.5 L) |
| Hydraulic System Fluid Capacity | 27.5 gal (104 L) |
| Max Speed | 7.9 mph (12.7 km/h) |
| Tires *If Applicable | 23.1x26-10PR R3 |
Drum
| Drum Width | 84.1 in (2134 mm) |
| Drum Diameter | 65 in (1651 mm) |
| Vibration Frequency 1 | 30.8 Hz |
| Nominal Amplitude - High | 0.1 in (1.8 mm) |
| Nominal Amplitude - Low | 0.1 in (1.2 mm) |
| Centrifugal Force - High | 82729.7 lb (368 kN) |
| Centrifugal Force - Low | 53729.4 lb (239 kN) |
