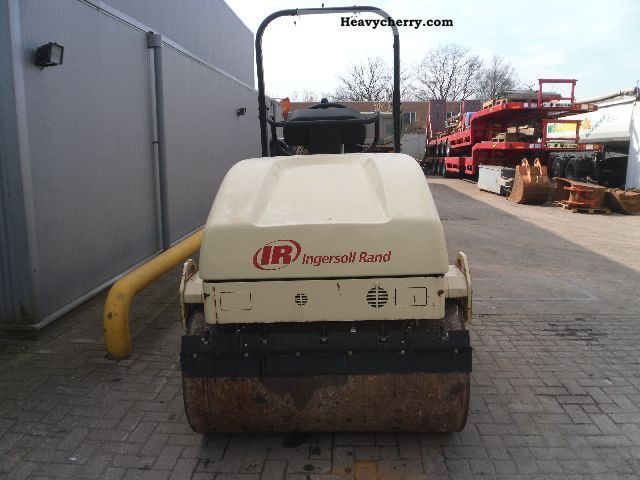

Ingersoll Rand DD38HF
Browse All Ingersoll Rand or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 8.39 in (2556 mm) |
| Overall Width | 4.88 ft in (1485 mm) |
| Height To Top Of Cab | 8.3 ft in (2529 mm) |
| Wheelbase | 5.66 in (1725 mm) |
Engine
| Engine Make | 2334 |
| Engine Model | V2203M |
| Net Power | 44 hp (32.9 kw) |
Operational
| Operating Weight | 8400 lb (3810.2 kg) |
| Fuel Capacity | 18 gal (68.2 L) |
| Hydraulic System Fluid Capacity | 22.4 gal (84.8 L) |
| Max Speed | 6.3 mph (10 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
Drum
| Drum Width | 54.2 in (1375 mm) |
| Drum Diameter | 29.1 in (739 mm) |
| Vibration Frequency 1 | 70 Hz |
| Nominal Amplitude - Med | 0.1 in (0.4 mm) |
| Centrifugal Force - Med | 8093.2 lb (36 kN) |
