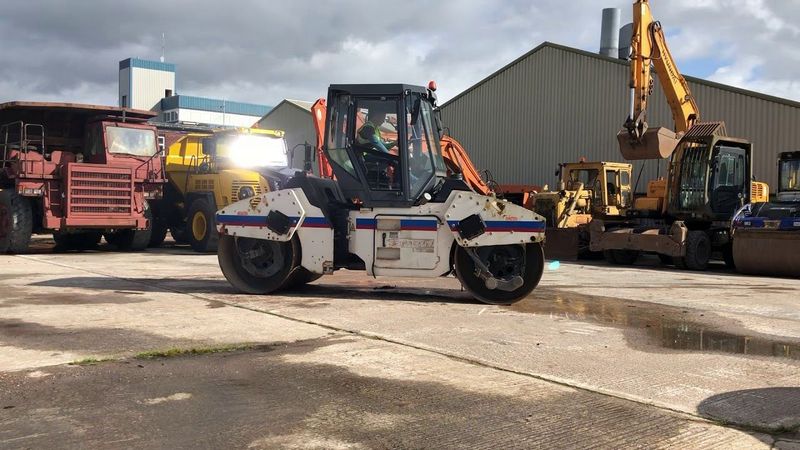

Hamm HD90.4
Browse All Hamm or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 15.1 in (4600 mm) |
| Height To Top Of Cab | 9.81 ft in (2990 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | BF4M2012C |
| Gross Power | 118.1 hp (88 kw) |
| Power Measured @ | 2300 rpm |
Operational
| Operating Weight | 22046.3 lb (10000 kg) |
| Fuel Capacity | 47.6 gal (180 L) |
Drum
| Drum Width | 66.2 in (1680 mm) |
| Vibration Frequency 1 | 50 Hz |
| Nominal Amplitude - High | 0.1 in (0.7 mm) |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 20457.7 lb (91 kN) |
| Centrifugal Force - Low | 19108.8 lb (85 kN) |
