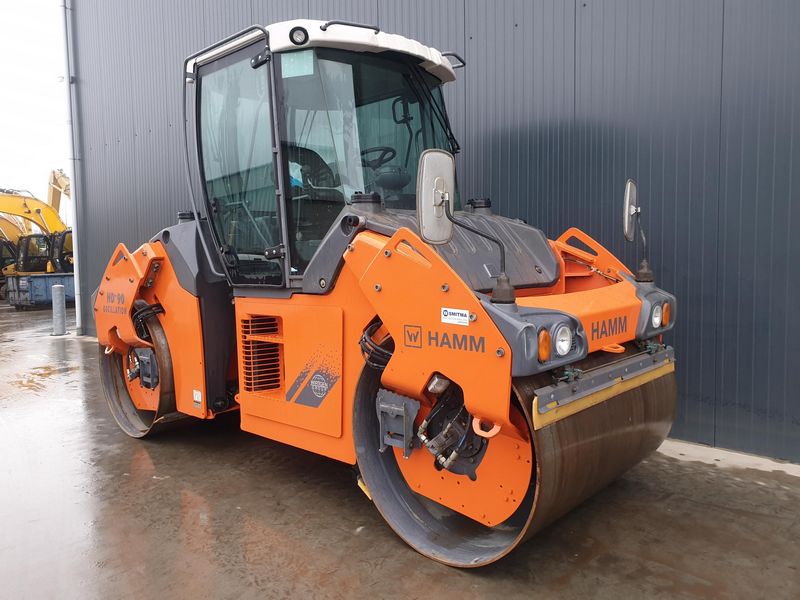

Hamm HD90
Contents:
| Overall Length | 15.1 in (4600 mm) |
| Overall Width | 5.84 ft in (1780 mm) |
| Height To Top Of Cab | 5.94 ft in (1810 mm) |
| Wheelbase | 133.86 in (3400 mm) |
| Ground Clearance | 31.11 in (790 mm) |
| Engine Make | DEUTZ |
| Engine Model | TCD 2012 L04 2V |
| Gross Power | 134.2 hp (100 kw) |
| Net Power | 134.2 hp (100 kw) |
| Power Measured @ | 2300 rpm |
| Operating Weight | 26102.8 lb (11840 kg) |
| Fuel Capacity | 48.9 gal (185 L) |
| Drum Width | 66.2 in (1680 mm) |
| Drum Diameter | 47.3 in (1200 mm) |
| Vibration Frequency 1 | 50 Hz |
| Nominal Amplitude - High | 0.1 in (0.7 mm) |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 16860.7 lb (75 kN) |
| Centrifugal Force - Low | 13488.6 lb (60 kN) |
