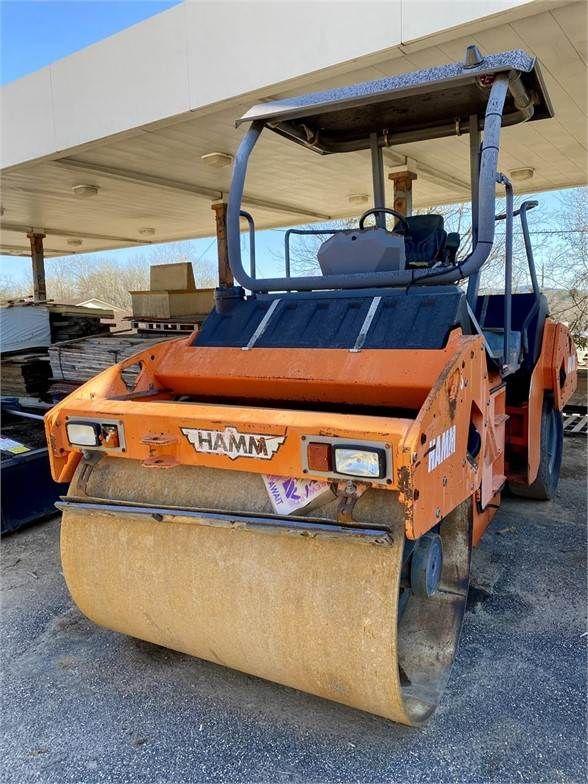

Hamm HD70K
Browse All Hamm or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 170.87 in (4340 mm) |
| Overall Width | 5.16 ft in (1570 mm) |
| Height To Top Of Cab | 9.65 ft in (2940 mm) |
| Wheelbase | 125.99 in (3200 mm) |
| Ground Clearance | 30.71 in (780 mm) |
| Track Width | 7.42 ft in (2.26 m) |
| Turning Radius - Inside | 13.7 ft in (4175 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | DEUTZ |
| Engine Model | TD 2011 L04 W |
| Gross Power | 74.3 hp (55.4 kw) |
| Net Power | 74.3 hp (55.4 kw) |
Operational
| Operating Weight Cabin | 15355.2 lb (6965 kg) |
| Operating Weight Rops | 14771 lb (6700 kg) |
| Operating Weight | 20745.5 lb (9410 kg) |
| Fuel Capacity | 37 gal (140 L) |
| Water Spray Tank Fluid Capacity | 190.3 gal (720 L) |
| Max Speed | 3.8 mph (6 km/h) |
| Steering Angle | 10 degrees |
Drum
| Drum Thickness | 0.7 in (17 mm) |
| Drum Width | 59.1 in (1500 mm) |
| Drum Diameter | 44.9 in (1140 mm) |
| Nominal Amplitude - High | 0.1 in (0.7 mm) |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 17310.3 lb (77 kN) |
| Centrifugal Force - Low | 14163 lb (63 kN) |
