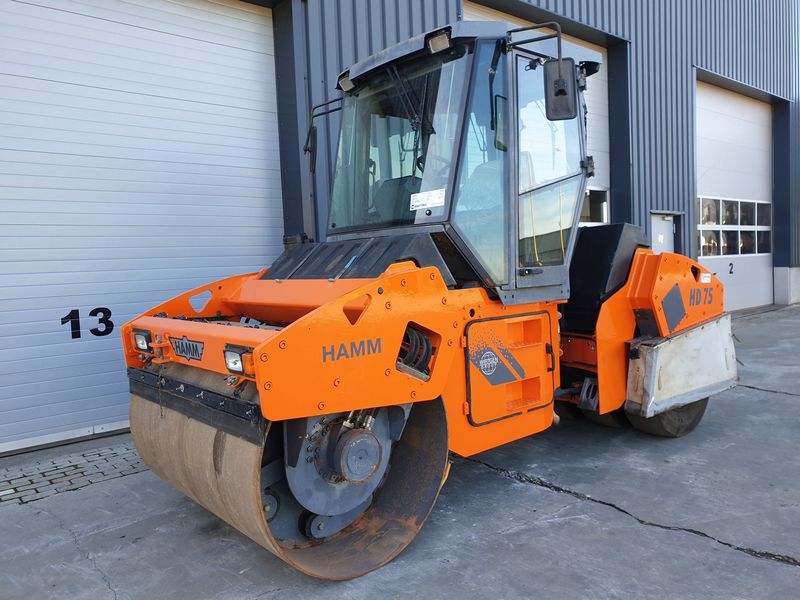

Hamm HD75
Contents:
| Overall Length | 14.24 in (4340 mm) |
| Overall Width | 5.84 ft in (1780 mm) |
| Height To Top Of Cab | 9.65 ft in (2940 mm) |
| Wheelbase | 125.99 in (3200 mm) |
| Ground Clearance | 30.71 in (780 mm) |
| Engine Make | DEUTZ |
| Engine Model | TD 2011 L04 W |
| Gross Power | 74.3 hp (55.4 kw) |
| Net Power | 74.3 hp (55.4 kw) |
| Power Measured @ | 2500 rpm |
| Operating Weight | 16755.2 lb (7600 kg) |
| Fuel Capacity | 34.4 gal (130 L) |
| Drum Width | 66.2 in (1680 mm) |
| Drum Diameter | 44.9 in (1140 mm) |
| Vibration Frequency 1 | 58 Hz |
| Nominal Amplitude - High | 0.1 in (0.7 mm) |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 17310.3 lb (77 kN) |
| Centrifugal Force - Low | 14163 lb (63 kN) |
