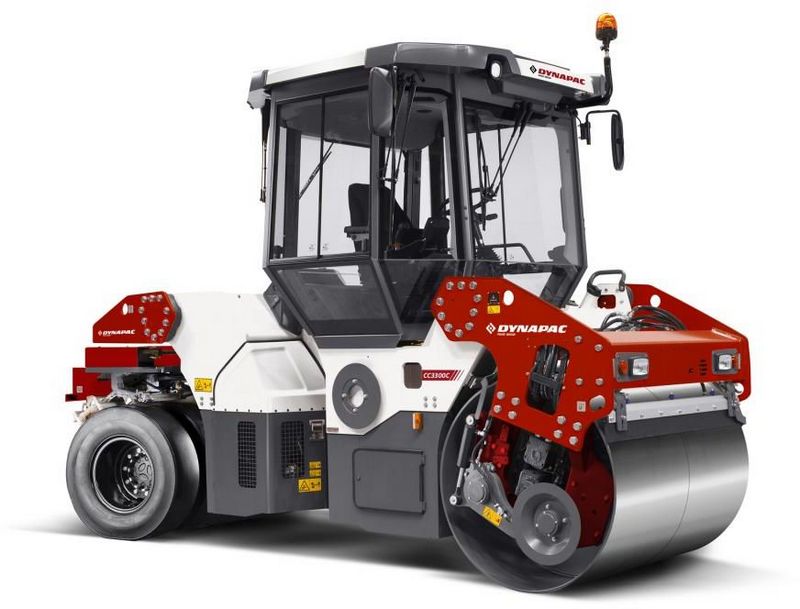

Dynapac CC3300C
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 176.78 in (4490 mm) |
| Overall Width | 6.14 ft in (1870 mm) |
| Height To Top Of Cab | 9.81 ft in (2990 mm) |
| Wheelbase | 131.5 in (3340 mm) |
| Ground Clearance | 10.63 in (270 mm) |
| Gradeability | 43 % |
| Turning Radius - Outside | 17.28 ft in (5266 mm) |
| Curb Clearance | 28.15 in (715 mm) |
Engine
| Emissions Certification | Tier 4i |
| Engine Make | Deutz |
| Engine Model | TCD 3.6, IIIB |
| Engine Type | Water cooled turbo diesel |
| Gross Power | 100.6 hp (75 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight Rops | 17416.6 lb (7900 kg) |
| Oscillating Angle | 7 degrees |
| Operating Weight | 19621.2 lb (8900 kg) |
| Fuel Capacity | 34.4 gal (130 L) |
| Engine Oil Capacity | 20.7 gal (78 L) |
| Water Spray System Fluid Capacity | 198.2 gal (750 L) |
| Max Speed | 7.5 mph (12 km/h) |
| Steering Angle | 32 degrees |
Drum
| Drum Thickness | 0.7 in (17 mm) |
| Drum Width | 68.2 in (1730 mm) |
| Drum Diameter | 45.3 in (1150 mm) |
| Static Linear Load | 139.5 lb/in (24.9 kg/cm) |
| Vibration Frequency 1 | 48 Hz |
| Nominal Amplitude - High | 0.1 in (0.5 mm) |
| Vibration Frequency 2 | 67 Hz |
| Nominal Amplitude - Low | 0.1 in (0.2 mm) |
| Centrifugal Force - High | 17760 lb (79 kN) |
| Centrifugal Force - Low | 14387.8 lb (64 kN) |
Tires
| Wheel Spacing | 6.5 in (165 mm) |
| Track Widths | 11.3 in (285 mm) |
| Wheel Track/Tire Overlap | 18.4 in (467 mm) |
Brakes
| Parking Brake | Failsafe multidisc brake in both drums |
| Service Brake | Hydrostatic in forward and reverse lever |
