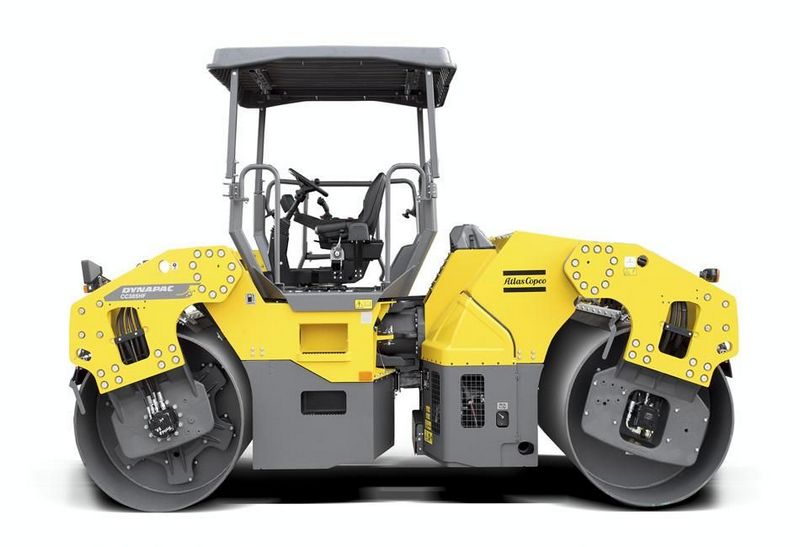

Dynapac CC385HF
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 176.78 in (4490 mm) |
| Height To Top Of Cab | 9.81 ft in (2990 mm) |
| Wheelbase | 131.5 in (3340 mm) |
| Ground Clearance | 10.63 in (270 mm) |
| Curb Clearance | 28.15 in (715 mm) |
| Gradeability | 37 % |
| Turning Radius - Outside | 17.41 ft in (5305 mm) |
Engine
| Engine Make | Kirloskar |
| Engine Model | 4R1040TA3 |
| Engine Type | Water cooled, Turbo charged, Intercooler |
| Gross Power | 105 hp (78.3 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight Rops | 20723.5 lb (9400 kg) |
| Oscillating Angle | 7 degrees |
| Operating Weight | 23589.5 lb (10700 kg) |
| Fuel Capacity | 54.2 gal (205 L) |
| Water Spray Tank Fluid Capacity | 198.2 gal (750 L) |
| Max Speed | 7.5 mph (12 km/h) |
| Steering Angle | 32 degrees |
Drum
| Drum Thickness | 0.7 in (17 mm) |
| Drum Width | 68.2 in (1730 mm) |
| Drum Diameter | 45.3 in (1150 mm) |
| Static Linear Load | 152.4 lb/in (27.2 kg/cm) |
| Vibration Frequency 1 | 48 Hz |
| Nominal Amplitude - High | 0.1 in (0.7 mm) |
| Vibration Frequency 2 | 67 Hz |
| Nominal Amplitude - Low | 0.1 in (0.3 mm) |
| Centrifugal Force - High | 20232.9 lb (90 kN) |
| Centrifugal Force - Low | 16860.7 lb (75 kN) |
