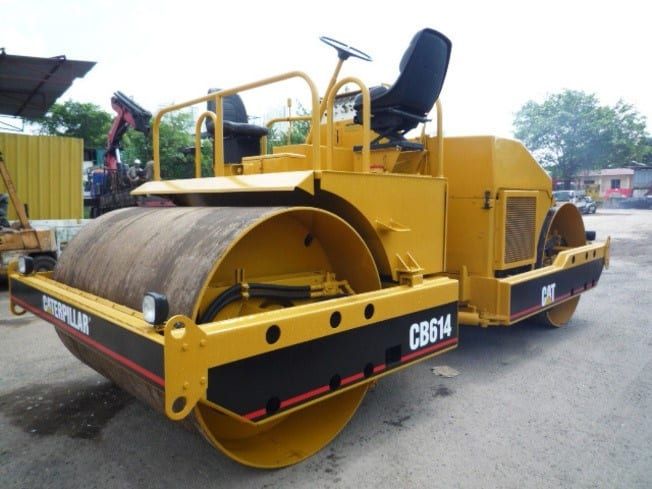

Caterpillar CB614
Browse All Caterpillar or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 18.34 in (5588 mm) |
| Height To Top Of Cab | 8.34 ft in (2540 mm) |
| Wheelbase | 12.67 in (3861 mm) |
| Ground Clearance | 15.24 in (387 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3208 |
| Gross Power | 155 hp (115.6 kw) |
| Displacement | 634.7 cu in (10.4 L) |
Operational
| Operating Weight | 25000.5 lb (11340 kg) |
| Fuel Capacity | 80.1 gal (303 L) |
| Engine Oil Capacity | 3 gal (11.3 L) |
| Hydraulic System Fluid Capacity | 45 gal (170.3 L) |
| Max Speed | 7.1 mph (11.3 km/h) |
Drum
| Drum Width | 78 in (1981 mm) |
| Drum Diameter | 54.1 in (1372 mm) |
| Vibration Frequency 1 | 38 Hz |
| Centrifugal Force - High | 21000 lb (93.5 kN) |
