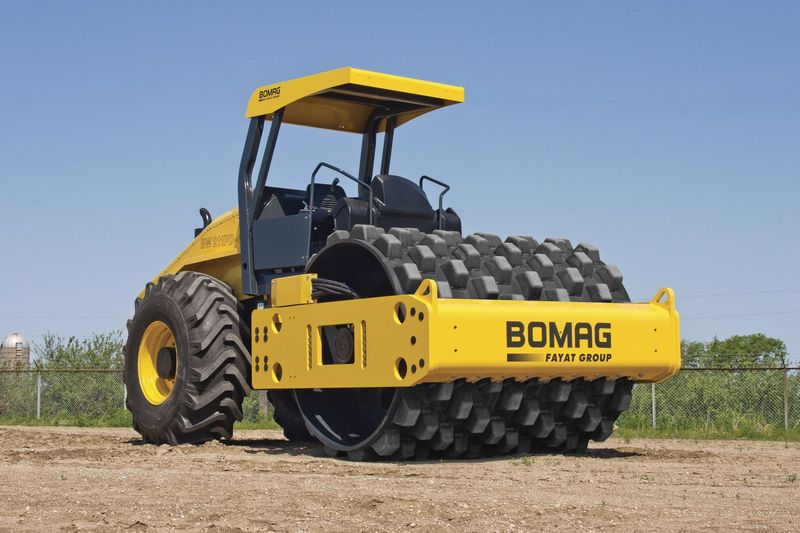

Bomag BM284
Contents:
| Overall Length | 17.92 in (5461 mm) |
| Height To Top Of Cab | 8.84 ft in (2692 mm) |
| Wheelbase | 10.84 in (3302 mm) |
| Ground Clearance | 18 in (457 mm) |
| Engine Make | 2347 |
| Engine Model | QSB 4.5 |
| Gross Power | 160 hp (119.4 kw) |
| Operating Weight | 28425 lb (12893.4 kg) |
| Fuel Capacity | 75 gal (283.9 L) |
| Max Speed | 10.1 mph (16.1 km/h) |
| Operating Voltage | 12 V |
| Drum Width | 84.1 in (2134 mm) |
| Drum Diameter | 54.1 in (1372 mm) |
| Static Linear Load | 429.6 lb/in (30.2 kg/cm) |
| Vibration Frequency 1 | 59.7 Hz |
| Nominal Amplitude - Med | 0.1 in (0.7 mm) |
| Vibration Frequency 2 | 66.7 Hz |
| Centrifugal Force - Med | 41207.5 lb (183.3 kN) |
