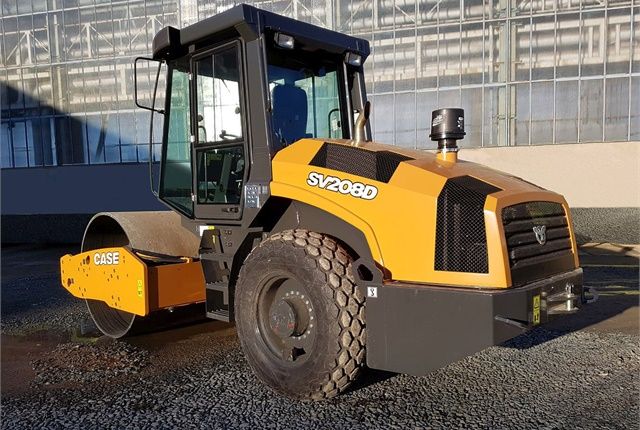

Case SV208D
Browse All Case or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 207.49 in (5270 mm) |
| Overall Width | 6.16 ft in (1875 mm) |
| Wheelbase | 105.91 in (2690 mm) |
| Ground Clearance | 15.2 in (386 mm) |
| Overall Height | 9.42 ft in (2870 mm) |
| Turning Radius - Inside | 10.5 ft in (3200 mm) |
| Turning Radius - Outside | 16.84 ft in (5130 mm) |
Electrical System
| Voltage | 24 V V (deletedelete) |
| Battery | 2 X 61 Amp |
| Alternator | 45 amps |
Engine
| Emissions Certification | Tier 4 Final |
| Gross Engine Horsepower | 2200 |
| Number Of Cylinders | 4 |
| Engine Make | Deutz |
| Engine Model | TCD3.6 L4 |
| Gross Power | 74.3 hp (55.5 kw) |
| Max Torque | 287.7 lb ft (390 Nm) |
| Displacement | 221 cu in (3.7 L) |
Drive Train
| Emergency Brake | Multi-disc |
| Parking Brakes | Multi-disc |
| Piston Type Wheel Drive Pump | 1 |
| Wheel Drive | 2 |
| Grade Ability Without Traction Assist | 43 degrees |
| With Atc Automatic Traction Control | 48 degrees |
| Differential / Lock System | Drive motor interlock |
| With Hx Drive Traction Assist | 65 degrees |
| Drive | Hydrostatic |
| Travel Speed | 4-Front/Revers |
| Transport Speed, Maximum | 8.7-mph,14(Kph) |
Capacities
| Vibration System | 408.9 cu in (6.7 L) |
| Hydraulic Oil Tank | 19.1 gal (72 L) |
| Fuel Tank | 67.4 gal (255 L) |
| Transmission | 0.7 gal (2.5 L) |
| Engine Oil | 2.7 gal (10 L) |
| Engine Coolant | 7.4 gal (28 L) |
Operational
| Smooth Drum Operating Weight With Cab | 15167.9 lb (6880 kg) |
| Smooth Drum Max. Weight With Cab | 20635.3 lb (9360 kg) |
| Smooth Drum Drum Weight | 8796.5 lb (3990 kg) |
| Smooth Drum_Static Linear Load | 52.3 lb (23.7 kg) |
| Pad Foot Drum_Operating Weight With Out Cab | 17570.9 lb (7970 kg) |
| Padfoot Drum_ Max. Weight With Cab | 23038.4 lb (10450 kg) |
Drum
| Smooth Drum | 4.3 ft in (1295 mm) |
| Padfoot Drum | 55 in (1397 mm) |
| Frame Extensions | 3.9 in (97.8 mm) |
| Drum Thickness | 1 in (25.4 mm) |
| Drum Width | 66 in (1676 mm) |
