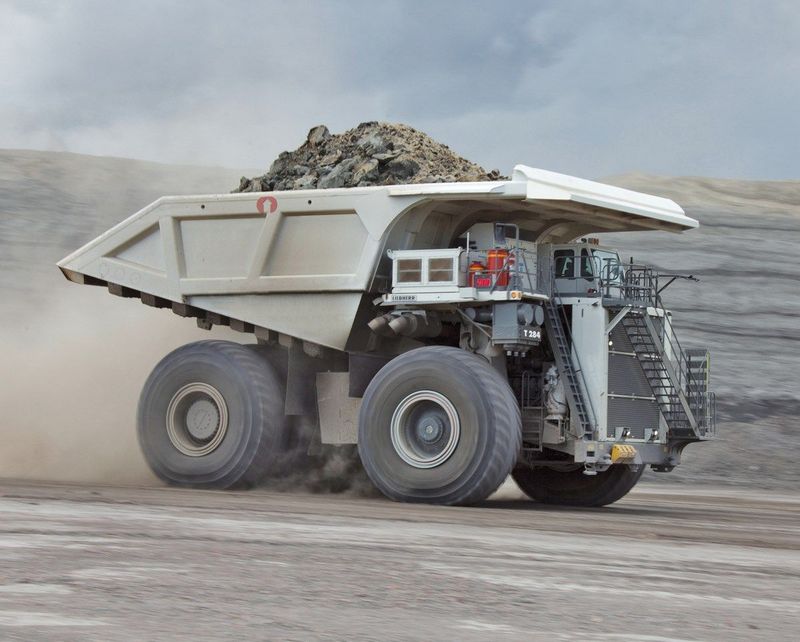

Liebherr T284
Browse All Liebherr or Rock Truck Models
Contents:
Dimensions
| Wheelbase | 21.5 ft in (6553 mm) |
| Centerline Front Tire Width | 12.83 ft in (3909 mm) |
| Loading Height (Evw) | 24.37 ft in (7425 mm) |
| Outside Body Width | 29.17 ft in (8891 mm) |
| Body Raised Height | 49.38 ft in (15050 mm) |
| Overall Track Width | 31.76 ft in (9679 mm) |
| Rear Axle Clearance | 3.47 ft in (1057 mm) |
| Overall Height Canopy | 27.22 ft in (8294 mm) |
Body
| Payload | 800000.2 lb (362874 kg) |
| Dumping Angle | 49 degrees |
Engine
| Gross Horsepower – Sae J1995 | 4023.1 hp (3000 kw) |
| Number Of Cylinders | 20 |
| Piston Displacement | 5821.7 cu in (95.4 L) |
| Engine Model | MTU 20V4000 C23 Tier 2 |
| Weight (Wet) | 25946.3 lb (11769 kg) |
Capacities
| Front Wheels (L&R) | 15.9 gal (60 L) |
| Hydraulic System | 344 gal (1302 L) |
Operational
| Fuel Capacity | 1413.6 gal (5351 L) |
| Operating Weight | 1321999.7 lb (599649 kg) |
Tires
| Standard | 56/80 R63 |
| Rims | 44 in |
Drive System
| Control System | Liebherr Litronic Plus AC drive system with IGBT technology |
| Alternator | AC brushless |
| Traction Motors | Litronic Plus traction control system |
| Air Cooling System | variable speed AC motor with twin impeller |
| Maximum Speed | 33.6 mph (54 km/h) |
Brakes
| Dynamic Braking | 6034.6 hp (4500 kw) |
| Park Brake | Spring applied |
| Service Brake | Outboard single disc , wheel speed, four calipers per wheel , single disc per side, two calipers per disc, armature speed |
