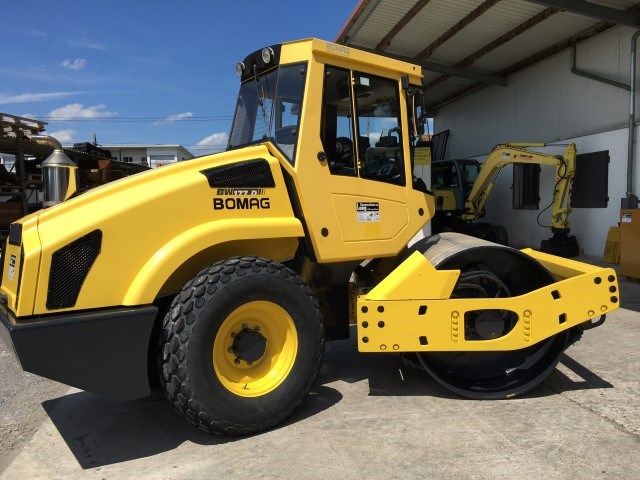

Bomag BW177D4
Contents:
| Overall Length | 16.12 in (4913 mm) |
| Overall Width | 6.03 ft in (1836 mm) |
| Height To Top Of Cab | 9.39 ft in (2860 mm) |
| Engine Make | 2349 |
| Engine Model | BF 4 M 2011 |
| Gross Power | 75.1 hp (56 kw) |
| Operating Weight | 19555.1 lb (8870 kg) |
| Fuel Capacity | 39.7 gal (150 L) |
| Drum Width | 66.2 in (1680 mm) |
| Vibration Frequency 1 | 30 Hz |
| Nominal Amplitude - High | 0.1 in (1.8 mm) |
| Vibration Frequency 2 | 40 Hz |
| Nominal Amplitude - Low | 0.1 in (0.9 mm) |
| Centrifugal Force - High | lb (135 kN) |
| Centrifugal Force - Low | lb (120 kN) |
