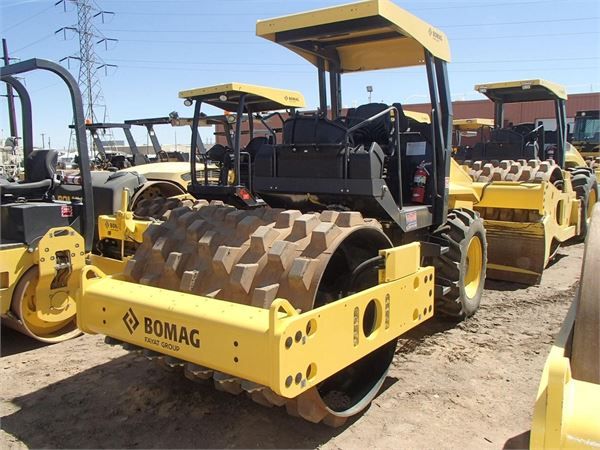

Bomag BW 177 PDH-50
Contents:
| Overall Length | 193.4 in (4912.36 mm) |
| Overall Width | 5.54 ft in (1686.56 mm) |
| Height To Top Of Cab | 9.39 ft in (2860.04 mm) |
| Wheelbase | 98.4 in (2499.36 mm) |
| Ground Clearance | 14.7 in (373.38 mm) |
| Operating Width | 5.96 ft in (1816.1 mm) |
| Oscillating Angle | 12 degrees |
| System | Oscillatory Articulation |
| Steering Method | Hydrostatic |
| Steering Angle | 35 degrees |
| Fuel | Diesel |
| Number Of Cylinders | 4 |
| Cooling Method | Water |
| Engine Make | Cummins |
| Engine Model | B3.3T |
| Gross Power | 74 hp (55.2 kw) |
| Power Measured @ | 2600 rpm |
| Aspiration | Tier 4i |
| Operating Weight | 16115 lb (7309.7 kg) |
| Fuel Capacity | 39.5 gal (149.6 L) |
| Max Speed | 8 mph (12.9 km/h) |
| Tires *If Applicable | 14.9-24/6PR |
| Operating Voltage | 12 V |
| Drum Width | 66.4 in (1686.6 mm) |
| Drum Diameter | 48.3 in (1226.9 mm) |
| Number Of Pads | 104 |
| Static Linear Load | 136.1 lb/in (24.3 kg/cm) |
| Pad Height | 3.1 in (78.8 mm) |
| Vibration Frequency 1 | 30 Hz |
| Pad Surface Area | 15.3 in2 (98.8 cm2) |
| Nominal Amplitude - High | 0.1 in (1.8 mm) |
| Vibration Frequency 2 | 40 Hz |
| Centrifugal Force - High | 27000 lb (120.2 kN) |
| Loaded Weight | 9545 lb (4329.6 kg) |
| Parking Brake | SAHR |
| Service Brake | Hydrostatic |
