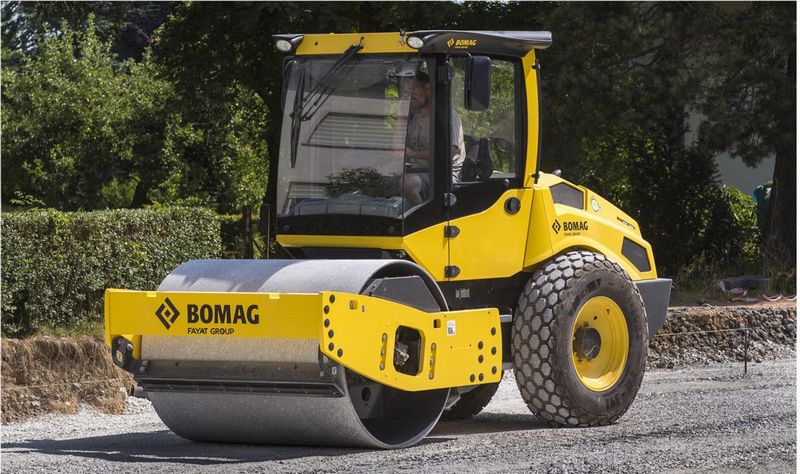

Bomag BW 177 DH-5
Contents:
| Overall Length | 171.8 in (4363.72 mm) |
| Overall Width | 5.54 ft in (1686.56 mm) |
| Height To Top Of Cab | 9.19 ft in (2799.08 mm) |
| Wheelbase | 92.5 in (2349.5 mm) |
| Ground Clearance | 15 in (381 mm) |
| Operating Width | 5.54 ft in (1686.56 mm) |
| System | Oscillatory Articulation |
| Steering Method | Hydrostatic |
| Fuel | Diesel |
| Emissions Level | Stage 4 |
| Number Of Cylinders | 4 |
| Cooling Method | Water |
| Engine Make | Kubota |
| Engine Model | V3307 CR-T |
| Gross Power | 74.3 hp (55.5 kw) |
| Power Measured @ | 2400 rpm |
| Aspiration | Tier 4 |
| Operating Weight | 14551 lb (6600.3 kg) |
| Fuel Capacity | 29.1 gal (110.2 L) |
| Max Speed | 10 mph (16.1 km/h) |
| Tires *If Applicable | 14.9-24/8PR |
| Operating Voltage | 12 V |
| Drum Width | 66.4 in (1686.6 mm) |
| Drum Diameter | 48.3 in (1226.9 mm) |
| Static Linear Load | 134.5 lb/in (24.1 kg/cm) |
| Vibration Frequency 1 | 29 Hz |
| Nominal Amplitude - High | 0.1 in (2 mm) |
| Vibration Frequency 2 | 32 Hz |
| Centrifugal Force - High | 25179 lb (112.1 kN) |
| Grossweight | 18078 lb (8200.1 kg) |
| Loaded Weight | 8929 lb (4050.2 kg) |
| Parking Brake | Hydromec |
| Service Brake | Hydrostatic |
