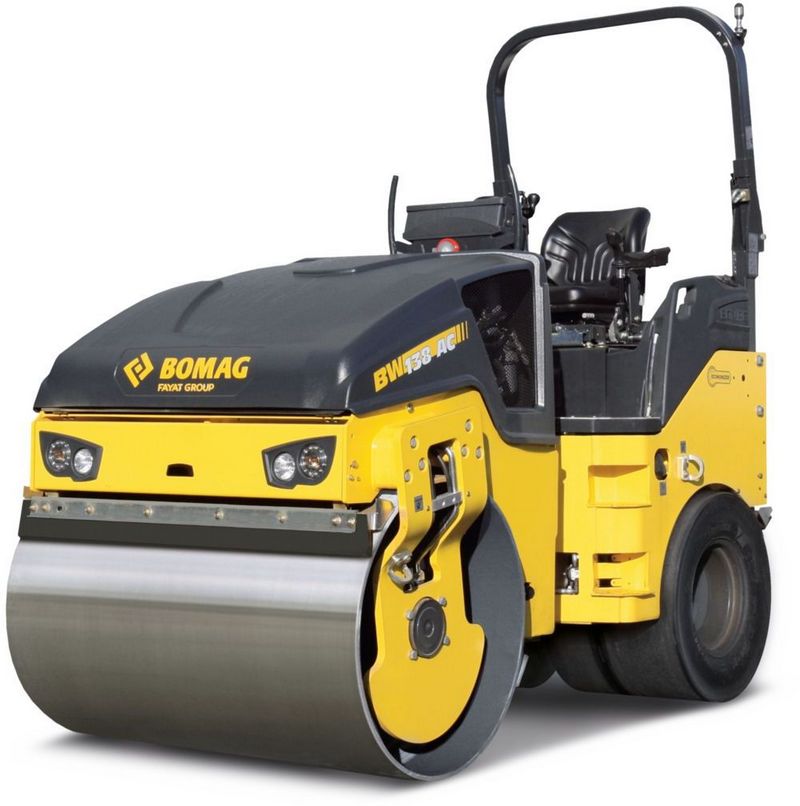

Bomag BW 138 AC-5
Contents:
| Overall Length | 111.8 in (2839.72 mm) |
| Overall Width | 4.82 ft in (1468.12 mm) |
| Height To Top Of Cab | 6.24 ft in (1899.92 mm) |
| Wheelbase | 74.8 in (1899.92 mm) |
| Ground Clearance | 13.4 in (340.36 mm) |
| Drum Diameter - Front | 2.95 ft in (899.16 mm) |
| Drum Diameter - Rear | 2.95 ft in (899.16 mm) |
| System | Oscillatory Articulation |
| Steering Method | Hydrostatic |
| Oscillating Angle | 2.8 degrees |
| Steering Angle | 32 degrees |
| Number Of Cylinders | 4 |
| Cooling Method | Water |
| Engine Make | Kubota |
| Engine Model | V2403 |
| Gross Power | 45.1 hp (33.6 kw) |
| Power Measured @ | 2400 rpm |
| Operating Weight | 9039 lb (4100.1 kg) |
| Fuel Capacity | 14.5 gal (54.9 L) |
| Max Speed | 6.2 mph (10 km/h) |
| Tires *If Applicable | 10.5/80-16 |
| Operating Voltage | 12 V |
| Drum Width | 54.3 in (1379.3 mm) |
| Static Linear Load | 83.2 lb/in (14.9 kg/cm) |
| Vibration Frequency 1 | 50 Hz |
| Nominal Amplitude - High | 0.1 in (0.6 mm) |
| Vibration Frequency 2 | 56 Hz |
| Centrifugal Force - High | 10116 lb (45 kN) |
| Grossweight | 9480 lb (4300.1 kg) |
| Parking Brake | Hydromec |
| Service Brake | Hydrostatic |
