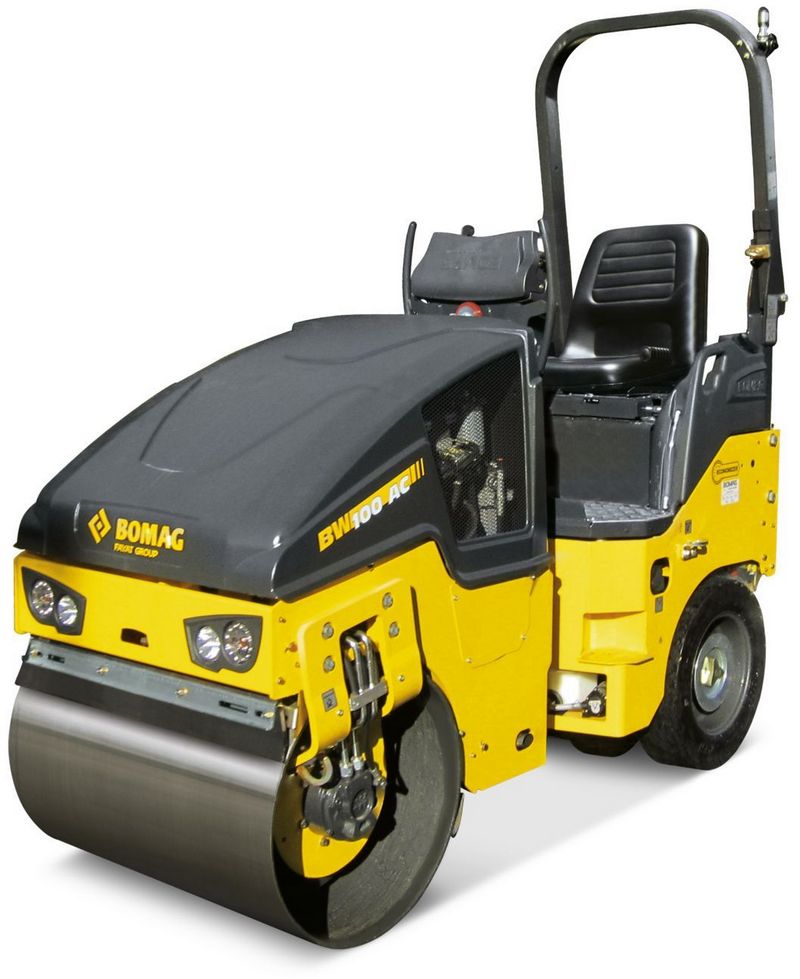

Bomag BW 120 AC-5
Contents:
| Overall Length | 99.6 in (2529.84 mm) |
| Overall Width | 4.18 ft in (1272.54 mm) |
| Height To Top Of Cab | 5.94 ft in (1808.48 mm) |
| Wheelbase | 69 in (1752.6 mm) |
| Ground Clearance | 10 in (254 mm) |
| Drum Diameter - Front | 2.3 ft in (701.04 mm) |
| Drum Diameter - Rear | 2.3 ft in (701.04 mm) |
| System | Oscillatory Articulation |
| Steering Method | Hydrostatic |
| Oscillating Angle | 2.8 degrees |
| Steering Angle | 32 degrees |
| Number Of Cylinders | 3 |
| Cooling Method | Water |
| Engine Make | Kubota |
| Engine Model | D1803 |
| Gross Power | 33 hp (24.6 kw) |
| Power Measured @ | 2600 rpm |
| Operating Weight | 5401 lb (2449.9 kg) |
| Fuel Capacity | 9.2 gal (34.9 L) |
| Max Speed | 6.2 mph (10 km/h) |
| Tires *If Applicable | 9.5/65-15 |
| Operating Voltage | 12 V |
| Drum Width | 47.2 in (1198.9 mm) |
| Static Linear Load | 56 lb/in (10.1 kg/cm) |
| Vibration Frequency 1 | 63 Hz |
| Nominal Amplitude - High | 0.1 in (0.6 mm) |
| Vibration Frequency 2 | 67 Hz |
| Centrifugal Force - High | 8093 lb (36 kN) |
| Grossweight | 6504 lb (2950.2 kg) |
| Parking Brake | Hydromec |
| Service Brake | Hydrostatic |
