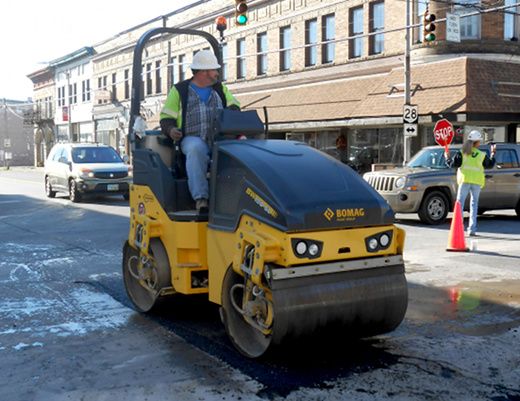

Bomag BW 120 SL-5
Browse All Bomag or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Track Radius Inner | 96.46 in (2450 mm) |
Steering System
| Oscillating Angle | 10 degrees |
| System | Oscillattory Articulation |
| Steering Method | Hydrostatic |
Engine
| Emission Tier Level | Tier 4 Final |
| Number Of Cylinders | 3 |
| Engine Make | Kubota |
| Engine Model | D 1703-DI |
| Gross Power | 25 hp (18.7 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Fuel Capacity | 9.3 gal (35 L) |
| Water Spray System Fluid Capacity | 43.6 gal (165 L) |
| Operating Voltage | 12 V |
Drum
| Nominal Amplitude - High | 0.1 in (0.5 mm) |
| Centrifugal Force - High | 8992.4 lb (40 kN) |
| Frequency | 4320 - VPM |
Weights
| Operating Weight | 5511.6 lb (2500 kg) |
| Static Linear Load Front Cece | 58.3 lb/in (10.4 kg/cm) |
Brakes
| Parking Brake | Hydromechanical |
| Service Brake | Hydroststic |
