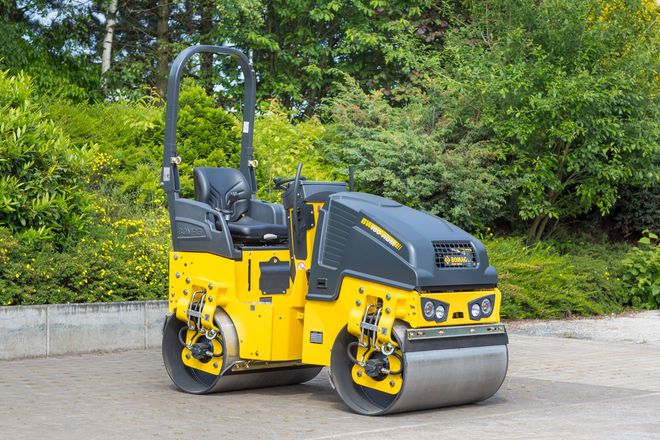

Bomag BW 100 ADM-5
Browse All Bomag or Static Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 86.4 in (2194.56 mm) |
| Overall Width | 3.46 ft in (1054.1 mm) |
| Wheelbase | 4.87 ft in (1483.37 mm) |
| Ground Clearance | 0.84 ft in (254 mm) |
| Height With Out Rops | 5.35 ft in (1628.15 mm) |
| Height With Rops | 7.56 ft in (2303.78 mm) |
| Track Radius Inner | 78 in (1981.2 mm) |
Steering System
| Steering Method | Hydrostatic |
| System | Oscillatory Articulation |
| Oscillating Angle | 8 degrees |
| Steering Angle To Either Side | 33 degrees |
Engine
| Number Of Cylinders | 3 |
| Engine Make | Kubota |
| Engine Model | D 902 |
| Gross Power | 20.2 hp (15.1 kw) |
Operational
| Fuel Capacity | 7.9 gal (30 L) |
| Spray Water Capacity | 26.4 gal (100 L) |
| Max Speed | 6.2 mph (10 km/h) |
Drum
| Nominal Amplitude - High | 0.1 in (0.5 mm) |
| Centrifugal Force - High | 3822 lb (17.1 kN) |
| Frequency | 3780 - vpm |
Weights
| Operating Weight - Standard | 3638 lb (1650.2 kg) |
| Gross Weight | 4409 lb (1999.9 kg) |
| Max Static Linear Load - Drive Drum | 46.2 lb/in (8.3 kg/cm) |
Brakes
| Parking Brake | Hydromechanical |
| Service Brake | Hydrostatic |
