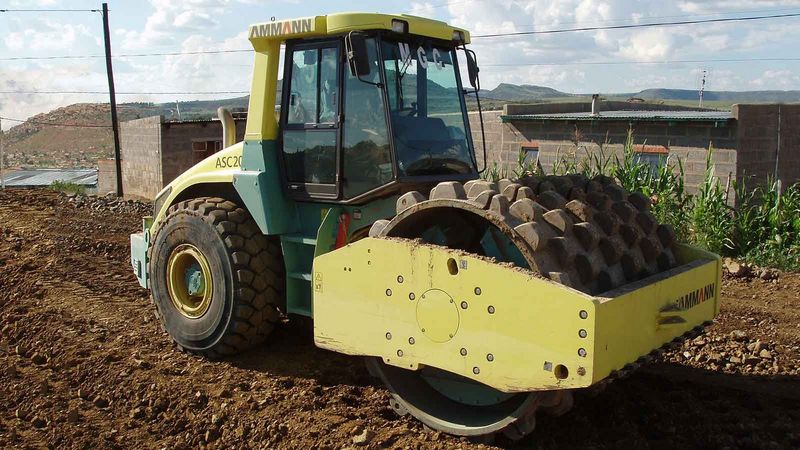

Ammann ASC200D
Contents:
| Overall Length | 20.67 in (6300 mm) |
| Overall Width | 8.21 ft in (2500 mm) |
| Height To Top Of Cab | 10.72 ft in (3265 mm) |
| Wheelbase | 10.37 in (3160 mm) |
| Ground Clearance | 19.69 in (500 mm) |
| Drum Diameter - Front | 5.58 ft in (1700 mm) |
| Engine Make | 2347 |
| Engine Model | QSB6.7-C220 |
| Net Power | 208 hp (155.2 kw) |
| Operating Weight | 45646.8 lb (20705 kg) |
| Fuel Capacity | 107 gal (405 L) |
| Max Speed | 6.6 mph (10.5 km/h) |
| Tires *If Applicable | 23.5-25 |
| Drum Width | 88.2 in (2240 mm) |
| Drum Diameter | 67 in (1700 mm) |
| Static Linear Load | 354 lb/in (63.2 kg/cm) |
| Vibration Frequency 1 | 28 Hz |
| Nominal Amplitude - High | 0.1 in (1 mm) |
| Vibration Frequency 2 | 34 Hz |
| Nominal Amplitude - Low | 0.1 in (2 mm) |
| Centrifugal Force - High | 67442.7 lb (300 kN) |
| Centrifugal Force - Low | 89923.6 lb (400 kN) |
