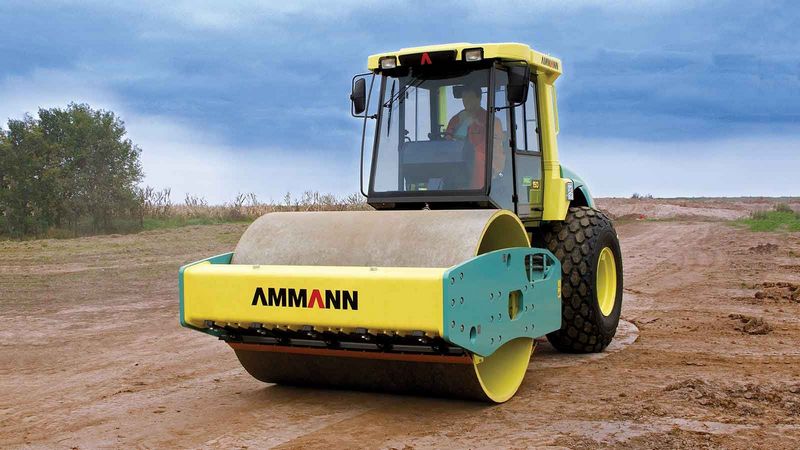

Ammann ASC150D
Contents:
| Overall Length | 18.66 in (5686 mm) |
| Overall Width | 8.21 ft in (2500 mm) |
| Height To Top Of Cab | 9.95 ft in (3030 mm) |
| Wheelbase | 9.26 in (2820 mm) |
| Ground Clearance | 16.54 in (420 mm) |
| Drum Diameter - Front | 4.93 ft in (1500 mm) |
| Engine Make | 2347 |
| Engine Model | QSB4.5-C160 |
| Net Power | 158 hp (117.9 kw) |
| Operating Weight | 31702.5 lb (14380 kg) |
| Fuel Capacity | 108.4 gal (410 L) |
| Max Speed | 6.3 mph (10 km/h) |
| Tires *If Applicable | 23.1-26 |
| Drum Width | 86.7 in (2200 mm) |
| Drum Diameter | 59.1 in (1500 mm) |
| Static Linear Load | 259.9 lb/in (46.4 kg/cm) |
| Vibration Frequency 1 | 29 Hz |
| Nominal Amplitude - High | 0.1 in (1 mm) |
| Vibration Frequency 2 | 35 Hz |
| Nominal Amplitude - Low | 0.1 in (2 mm) |
| Centrifugal Force - High | 53279.8 lb (237 kN) |
| Centrifugal Force - Low | 73063 lb (325 kN) |
