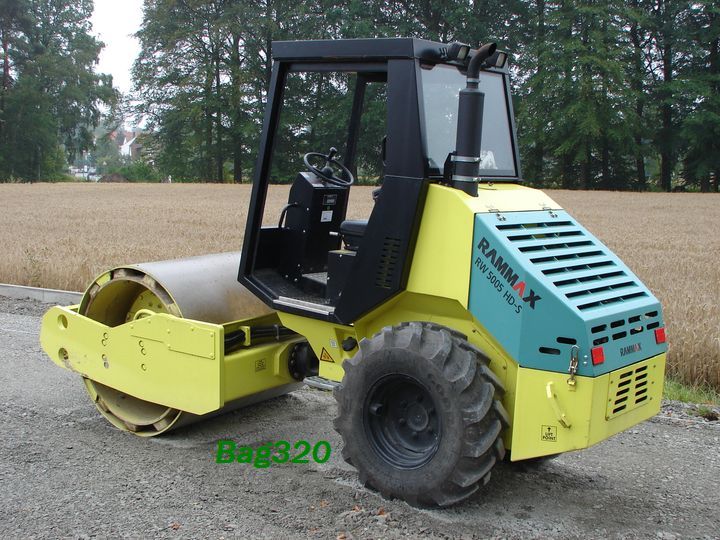

Rammax RW5005S
Browse All Rammax or Vibratory Compactor Models
Contents:
Dimensions
| Overall Length W/O Blade | 13.23 ft in (4030 mm) |
| Width Over Tires | 5.06 ft in (1542 mm) |
| Height To Top Of Cab | 8.14 ft in (2480 mm) |
Drum
| Drum Diameter | 42.13 in (1070 mm) |
| Nominal Amplitude - High | 0.08 in (1.8 mm) |
| Drum Width | 55.12 in (1400 mm) |
| Centrifugal Force - High | 22480.9 lb (100 kN) |
| Vibration Frequency 1 | 34 Hz |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2334 |
| Engine Model | V3300 |
| Gross Power | 68 hp (50.7 kw) |
| Power Measured @ | 2650 rpm |
Operational
| Operating Weight | 10582.2 lb (4800 kg) |
| Fuel Capacity | 17.2 gal (65 L) |
| Hydraulic System Fluid Capacity | 36.8 gal (139 L) |
| Max Speed | 6.3 mph (10 km/h) |
