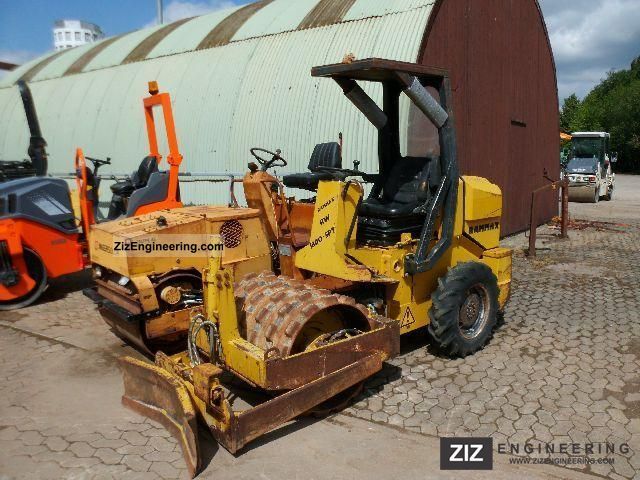

Rammax RW1800SPT
Browse All Rammax or Vibratory Compactor Models
Contents:
Dimensions
| Width Over Tires | 4.6 ft in (1400 mm) |
| Height To Top Of Cab | 7.44 ft in (2265 mm) |
| Overall Length W/ Blade | 10.5 ft in (3200 mm) |
Drum
| Drum Diameter | 31.11 in (790 mm) |
| Nominal Amplitude - High | 0.07 in (1.6 mm) |
| Drum Width | 35.44 in (900 mm) |
| Centrifugal Force - High | 14387.78 lb (64 kN) |
| Vibration Frequency 1 | 34 Hz |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2334 |
| Engine Model | D1403 |
| Gross Power | 26.7 hp (19.9 kw) |
| Power Measured @ | 2800 rpm |
Operational
| Operating Weight | 4629.8 lb (2100 kg) |
| Fuel Capacity | 9.3 gal (35 L) |
| Hydraulic System Fluid Capacity | 36.5 gal (138 L) |
| Max Speed | 4.4 mph (7 km/h) |
