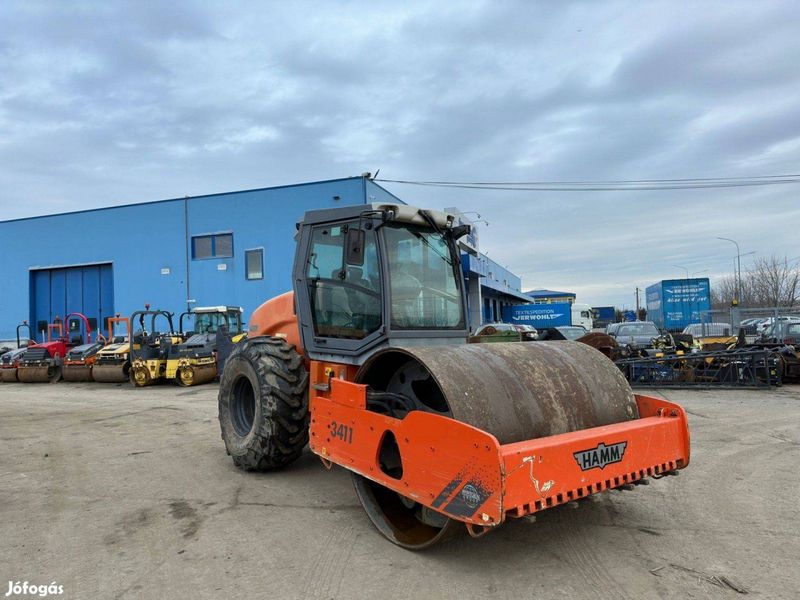

Hamm 3411P
Browse All Hamm or Vibratory Compactor Models
Contents:
Dimensions
| Overall Length W/O Blade | 18.69 ft in (5695 mm) |
| Width Over Tires | 7.39 ft in (2250 mm) |
| Height To Top Of Cab | 9.98 ft in (3040 mm) |
| Wheelbase | 118.31 in (3005 mm) |
| Ground Clearance | 14.77 in (375 mm) |
| Turning Radius - Inside | 13.14 ft in (4005 mm) |
Drum
| Drum Diameter | 66.3 in (1684 mm) |
| Pad Surface Area | 23.87 in2 (15400 cm2) |
| Vibration Frequency 1 | 40 Hz |
| Number Of Pads | 140 |
| Drum Thickness | 0.6 in (15 mm) |
| Drum Width | 84.26 in (2140 mm) |
| Nominal Amplitude - High | 0.07 in (1.61 mm) |
| Nominal Amplitude - Low | 0.03 in (0.68 mm) |
| Centrifugal Force - High | _ - (211 kN) |
| Pad Height | 3.94 in (100 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | DEUTZ |
| Engine Model | TCD 2012 L04 |
| Gross Power | 134.2 hp (100 kw) |
| Net Power | 134.2 hp (100 kw) |
| Power Measured @ | 2300 rpm |
Operational
| Smooth Drum Operating Weight With Cab | 26014.6 lb (11800 kg) |
| Operating Weight Rops | 25529.6 lb (11580 kg) |
| Oscillating Angle | 10 degrees |
| Operating Weight | 29387.7 lb (13330 kg) |
| Fuel Capacity | 76.7 gal (290 L) |
| Max Speed | 6.9 mph (11 km/h) |
| Tires | TR 23.1-26 12 PR |
