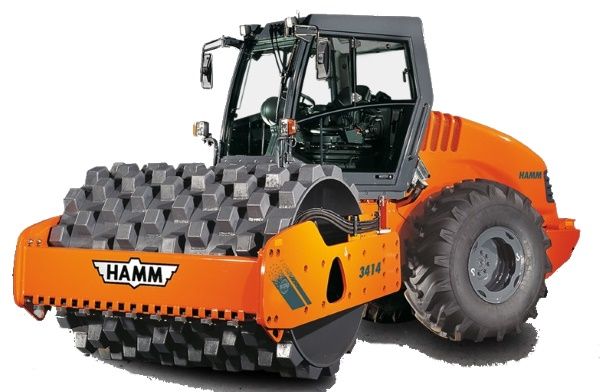

Hamm 3414P
Browse All Hamm or Vibratory Compactor Models
Contents:
Dimensions
| Overall Length W/O Blade | 18.72 ft in (5705 mm) |
| Width Over Tires | 7.39 ft in (2250 mm) |
| Height To Top Of Cab | 9.88 ft in (3010 mm) |
| Wheelbase | 118.71 in (3015 mm) |
| Ground Clearance | 14.77 in (375 mm) |
| Overall Length | 18.72 ft in (5705 mm) |
| Overall Width | 88.59 in (2250 mm) |
| Turning Radius - Inside | 12.11 ft in (3690 mm) |
Drum
| Drum Diameter | 66.3 in (1684 mm) |
| Number Of Pads | 140 |
| Centrifugal Force - High | 57551.09 lb (256 kN) |
| Drum Thickness | 0.79 in (20 mm) |
| Pad Height | 3.94 in (100 mm) |
| Pad Surface Area | 23.87 in2 (15400 cm2) |
| Centrifugal Force - Low | 48333.92 lb (215 kN) |
| Vibration Frequency 1 | 30 Hz |
| Vibratory Frequency 2 | 40 Hz |
| Drum Width | 84.26 in (2140 mm) |
| Nominal Amplitude - Low | 0.04 in (0.9 mm) |
| Nominal Amplitude - High | 0.08 in (1.9 mm) |
Engine
| Emission Tier Level | EU Stage IIIA / EPA Tier 3 |
| Number Of Cylinders | 4 |
| Engine Make | DEUTZ |
| Engine Model | TCD 2012 L04 |
| Gross Power | 134.2 hp (100 kw) |
| Net Power | 134.2 hp (100 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 293 cu in (4.8 L) |
Operational
| Smooth Drum Operating Weight With Cab | 31614.3 lb (14340 kg) |
| Operating Weight Rops | 31129.3 lb (14120 kg) |
| Oscillating Angle | 10 degrees |
| Operating Weight | 34987.4 lb (15870 kg) |
| Fuel Capacity | 76.7 gal (290 L) |
| Max Speed | 6.9 mph (11 km/h) |
| Tires | TR 23.1-26 12 PR |
