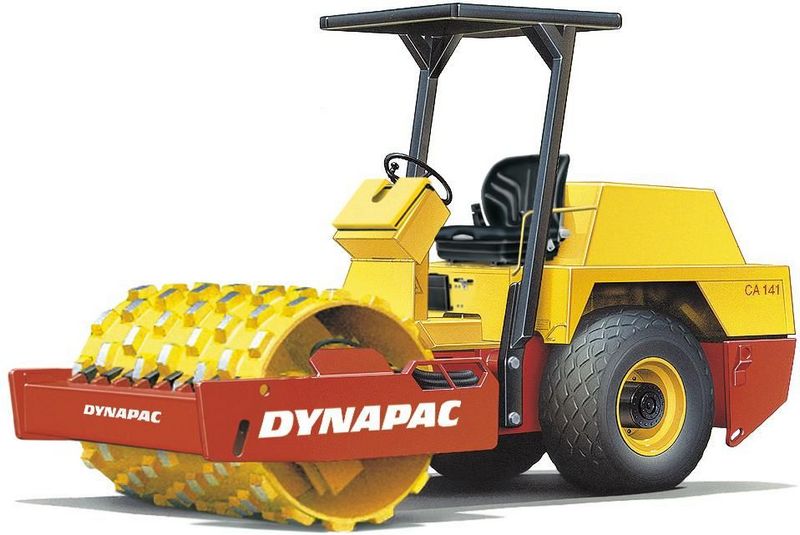

Dynapac CA141PD
Contents:
| Overall Length W/O Blade | 12.47 ft in (3800 mm) |
| Width Over Tires | 5.34 ft in (1626 mm) |
| Height To Top Of Cab | 7.89 ft in (2403 mm) |
| Drum Diameter | 42.01 in (1067 mm) |
| Pad Surface Area | 8.22 in2 (5300 cm2) |
| Vibration Frequency 1 | 34 Hz |
| Number Of Pads | 90 |
| Drum Width | 60 in (1524 mm) |
| Nominal Amplitude - High | 0.05 in (1.11 mm) |
| Centrifugal Force - High | 18659.15 lb (83 kN) |
| Engine Make | 2240 |
| Engine Model | e 3029 TF |
| Gross Power | 71.1 hp (53 kw) |
| Operating Weight | 11111.3 lb (5040 kg) |
| Max Speed | 4.4 mph (7 km/h) |
