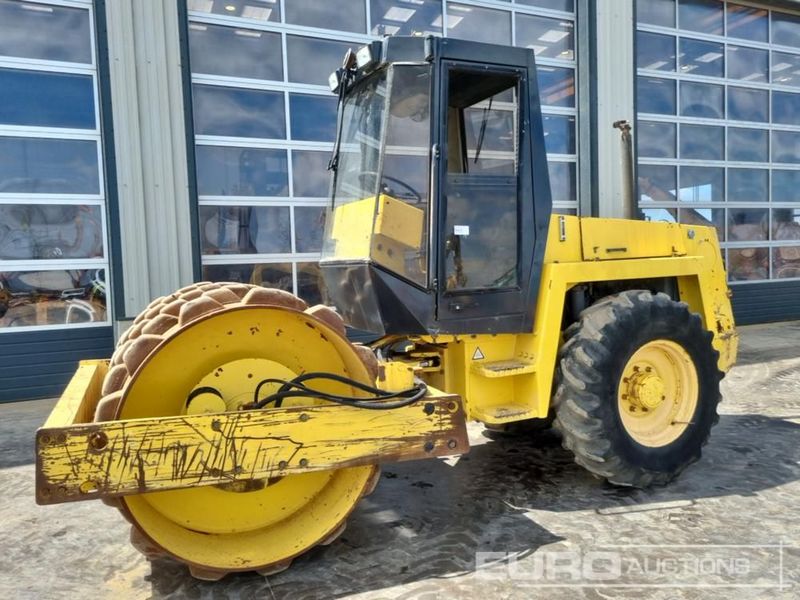

Bomag BW172PD-2
Contents:
| Width Over Tires | 5.52 ft in (1682 mm) |
| Height To Top Of Cab | 9.36 ft in (2850 mm) |
| Wheelbase | 7.97 in (2428 mm) |
| Ground Clearance | 13.39 in (340 mm) |
| Drum Diameter | 47.01 in (1194 mm) |
| Number Of Pads | 104 |
| Nominal Amplitude - High | 0.06 in (1.33 mm) |
| Centrifugal Force - High | 28775.55 lb (128 kN) |
| Pad Surface Area | 15.35 in2 (9900 cm2) |
| Vibration Frequency 1 | 33 Hz |
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | BF4L 1011 |
| Gross Power | 72.5 hp (54 kw) |
| Net Power | 76.5 hp (57 kw) |
| Power Measured @ | 2650 rpm |
| Aspiration | natural |
| Operating Weight | 15399.3 lb (6985 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Max Speed | 4.5 mph (7.2 km/h) |
| Tires | 14.9-24/6PR |
| Operating Voltage | 12 V |
