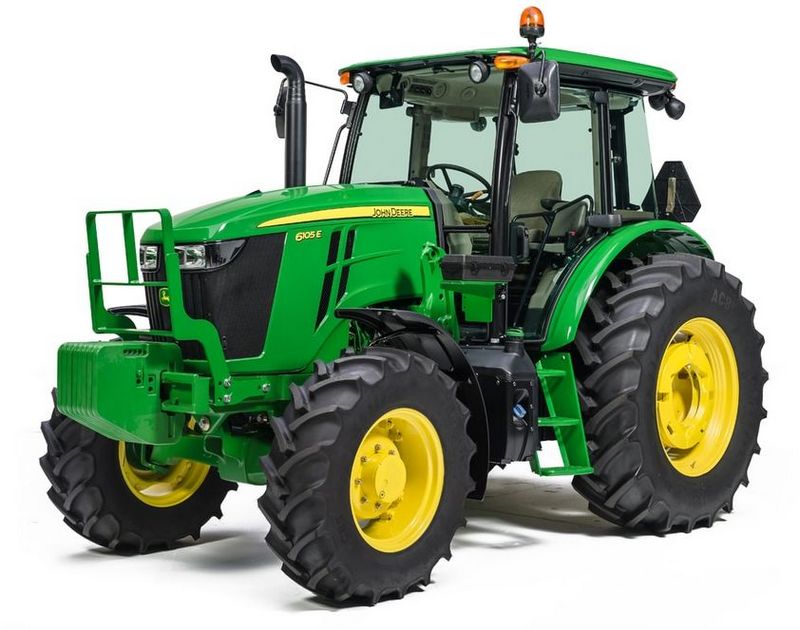

John Deere 6105E
Browse All John Deere or Utility Tractor Models
Contents:
Dimensions
| Approximate Shipping Weight (Open-Station; Cab) | 2WD - 3960 ; 4064 kg 8480 ; 9780 lb, MFWD - 4268; 4645 kg 9410; 10,240 lb |
| Front Axle Clearance - 2wd | 23.51 in (597 mm) |
| Front Axle Clearance - Mfwd | 18 in (457 mm) |
| Front Tread Range | 2WD and MFWD - 1523-2033 mm 60.0-80.0 in. |
| Minimum Rear Tread Setting | 59.97 in (1523 mm) |
| Rear Tread Range | 2WD - 1512-2012 mm 59.5-79.2 in. |
| Wheelbase - 2wd | 96.7 in (2456 mm) |
| Wheelbase - 4wd | 96.46 in (2450 mm) |
| Wheelbase - Mfwd | 96.46 in (2450 mm) |
Engine
| Rated Engine Speed | 77 @ 2200 kW 105 @ 2200 engine hp |
| Engine Manufacturer | John Deere PowerTech PWL (B20 Diesel Compatible) |
| Cylinder Liners | Wet |
| Rated Pto Power | 66 @ 2100 rpm kW 89 @ 2100 rpm PTO hp |
| Displacement | 4.5 L 275 cu in. |
| Aspiration | Wastegate turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation |
| Fuel Tank Capacity | 44.4 gal (168 L) |
Power Take-Off(Pto)
| Standard | Independent 540/1000 |
| Pto Actuation | Electronic |
| Pto Speeds @ Engine Rpm | 540 @ 2085 or 1000 @ 2067 rpm |
Transmission
| Standard Transmission; Forward/Reverse | 12F/12R PowrReverser Transmission (30) km/h 12F/12R PowrReverser Transmission (19) mph |
| Optional Transmission; Forward/Reverse | 24F/12R PowrReverser Transmission (40) km/h 24F/12R PowrReverser Transmission (25) mph |
| Clutch, Wet/Dry | Wet |
| Creeper | No |
| Reverser | Base LH |
| On-The-Go Shifting (Yes/No/Partial) | Yes |
Tires
| 2wd | Front 10.00-16 in. 8PR F2 BiasRear 460/85R38 in. 8PR R1W Radial |
| Mfwd | Front 380/85R24 in. 8PR R1W RadialRear 460/85R38 in. 8PR R1W Radial |
Hydraulic
| Maximum Operating Pressure | 2828.3 psi (19500 kPa) |
| Remote Control Valves Available | 2 std., 3 opt. with deluxe coupler |
| Rated Flow @ One Scv | 20 gal/min (75.7 L/min) |
| Hitch Draft Control Load Sense Type | Lower-link |
| Hitch Category (Sae Designation) | Category II |
| Sensing Type | Mechanical |
| Joystick Scv Control | Mid mount, opt. |
| Pump Rated Output | Standard 20.0 Advertised gpm 75.7 Advertised L/min |
| Hydraulic Type | Open-center |
Final Drive
| Final Drive Type | Inboard planetary |
| Differential Controls | Mechanical |
| Engage On-The-Go Rear Differential Lock | Yes |
| Axle Type | Flanged |
| Brakes, Type And Control | Mechanically actuated wet disk |
