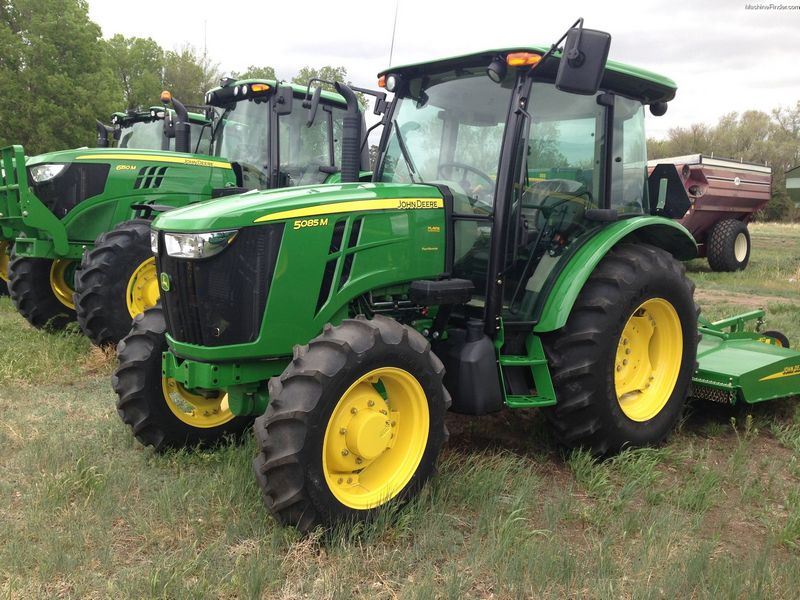

John Deere 5085M
Browse All John Deere or Utility Tractor Models
Contents:
Dimensions
| Approximate Shipping Weight (Open-Station; Cab) | 2WD - 3310; 3720 kg 7300; 8200 lb, MFWD - 3540; 3950 kg 7800; 8700 lb |
| Front Axle Clearance | 2WD - 477.5 mm 18.8 in., MFWD - 401.3 mm 15.8 in. |
| Front Axle Clearance - 2wd | 18.8 in (477.5 mm) |
| Front Axle Clearance - Mfwd | 15.8 in (401.3 mm) |
| Front Tread Range | 2WD - 1463 - 2098 mm 57.6 - 82.6 in., MFWD - 1340 - 1904 mm 52.8 - 75.0 in. |
| Limited Slip Differential | Yes |
| Minimum Rear Tread Setting | 2WD - 1348 mm 53.1 in. |
| Rear Tread Range | 2WD - 1348 - 2054 mm 53.1 - 80.9 in. |
| Turning Radius With Brakes | 2WD - 3.51 m 11.2 ft, MFWD - 3.9 m 12.8 ft |
| Turning Radius Without Brakes | 2WD - 3.9 m 12.8 ft, MFWD - 4.4 m 14.4 ft |
| Wheelbase - 2wd | 92.52 in (2350 mm) |
| Wheelbase - Mfwd | 92.52 in (2350 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Manufacturer | John Deere PowerTech PWL |
| Family | FJDXL04.5211 |
| Displacement | 4.5 L 276 cu in. |
| Aspiration | Turbocharged / Air-to-Air Aftercooled |
| Fuel Tank Capacity | Standard 114; 140 L 30; 37 gal.Optional 144; 174 L 38; 46 gal. |
| Underhood Muffler | Yes |
Power Take-Off(Pto)
| Standard | Independent 540/540 Economy |
| Optional | 540/540E/1000 |
| Pto Actuation | Electrohydraulic |
| Pto Speeds @ Engine Rpm | 540 @ 2100; 540E @ 1645 rpm |
Performance
| Advertised Pto | 52 @ 2100 per SAE kW 70 @ 2100 per SAE PTO hp |
| Maximum Torque (Pto) | 355 @ 1600 |
| Advertised Engine Hp (Kw) @ Rated Speed | 63.3 @ 2100 per ISO 97/68/EC kW 85 @ 2100 per ISO 97/68/EC engine hp |
Transmission
| Standard Transmission; Forward/Reverse | 16F/16R PowrReverser |
| Optional Transmission; Forward/Reverse | 12F/4R SyncShuttle Plus, 32F/16R PowrReverser Plus |
| Clutch, Wet/Dry | Wet |
| Creeper | 16F/16R PowrReverser |
| Reverser | Left Hand, Mechanical |
| On-The-Go Shifting (Yes/No/Partial) | Partial |
Tires
| 2wd | Front 7.5-16 8PR F2Rear 16.9-30 6PR R1 |
| Mfwd | Front 11.2-24 8PR R1Rear 16.9-30 6PR R1 |
Hydraulic
| Maximum Operating Pressure | 2900.8 psi (20000 kPa) |
| Remote Control Valves Available | 0 (opt. 3) |
| Rated Flow @ One Scv | 18.5 gal/min (70 L/min) |
| Maximum Hydraulic Power | 31.1 hp (23.2 kw) |
| Hitch Draft Control Load Sense Type | Electrohydraulic |
| Hitch Category (Sae Designation) | 2; convertible to 1 |
| Sensing Type | Lower Link |
| Joystick Scv Control | Optional |
| Pump Rated Output | Standard 24.7 gpm 94 L/min |
| Hydraulic Type | Open Center |
| Hitch Lift Cap. Lb (Kg) @24 In. Bhnd Lift Pt. | Standard 2100 kg 4600 lbOptional 2550 kg 5600 lb |
Final Drive
| Final Drive Type | Inboard Planetary |
| Differential Controls | Electrohydraulic |
| Availability | Front NoFront & Rear No |
| Engage On-The-Go Rear Differential Lock | Yes |
| Axle Type | Flanged |
| Brakes, Type And Control | Hydraulic Wet Disc |
