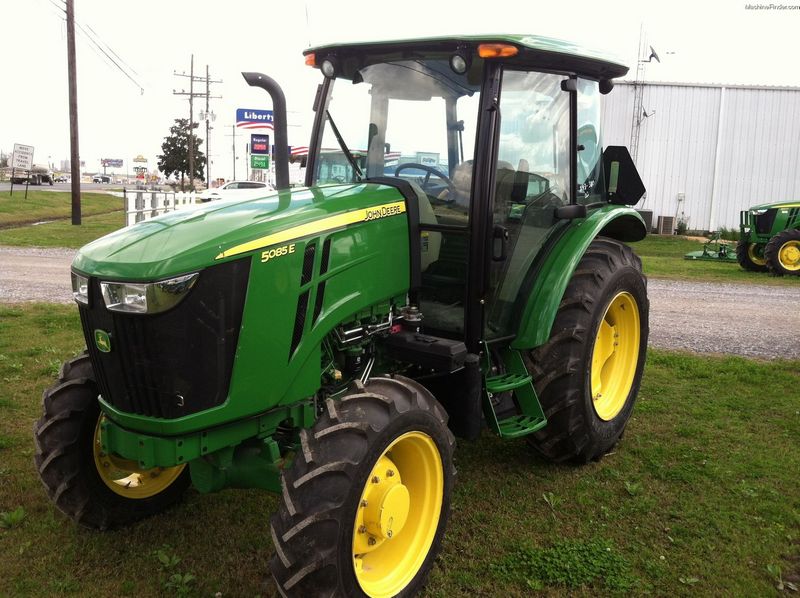

John Deere 5085E
Browse All John Deere or Utility Tractor Models
Contents:
Dimensions
| Approximate Shipping Weight (Open-Station; Cab) | MFWD: Open: 3200 kg 7055 lb Cab: 3600 kg 7937 lb |
| Wheelbase - Mfwd | 90.56 in (2300 mm) |
Engine
| Number Of Cylinders | 4 |
| Family | EJDXL04.5211 |
| Cylinder Liners | Wet sleeved |
| Rated Power | At 2400 per ISO 97/68/EC: 62.5 kW 85 hp |
| Rated Pto Power | At 2400 per SAE: 52.2 kW 70 hp |
| Displacement | 274.7 cu in (4.5 L) |
| Aspiration | Turbocharged |
| Description | John Deere PowerTech 4045 |
Capacities
| Fuel Tank | Standard: Open: 94.6 L 25 U.S. gal. Cab: 113.6 L 30 U.S. gal. |
Transmission
| Clutch, Wet/Dry | Wet |
| Creeper | Not available |
| Reverser | Yes |
| Transmission Type | Standard: 12F/12R PowrReverser |
Tires
| Wheel Tread Range | MFWD: front: 1340-1904 mm 52.8-75.0 in. |
| Turning Radius With Brakes | MFWD: 3.54 m 11.6 ft |
| Front | MFWD: 11.2-24 ; R1 |
| Rear | MFWD: 16.9-30 ; R1 |
| Turning Radius Without Brakes | MFWD: 4.36 m 14.3 ft |
Hydraulic
| Joystick Scv Control | Optional |
| Pump Rated Output | Standard: 85.1 L/min 22.5 gpm |
| Hydraulic Type | Open Center |
| Available Flow At A Single Rear Scv | 60.1 L/min 15.9 gpm |
Rear Hitch
| Hitch Draft Control Load Sense Type | Mechanical |
| Remote Control Valves Available | Rear: less, dualt standard, or triple deluxe Mid: less, dual tstandard, or triple standard (field installed) |
| Hitch Category (Sae Designation) | Category 2 |
| Maximum Lift Capacity Behind Lift Points | Standard: 1457 kg 3213 lb |
| Sensing Type | Top link |
Rear Power Take -Off (Pto)
| Rear Power Take -Off (Pto) Type | Standard: 540/540E |
| Engine Rpm (At Rated Pto Speeds) | 540 at 2100 rpm |
| Pto Actuation | Electrohydraulic |
Rear Axle
| Final Drive Type | Inboard planetary |
| Differential Controls | Mechanical (pedal) |
| Axle Type | Flanged |
| Brakes,Type And Control | Hydraulic wet disc |
