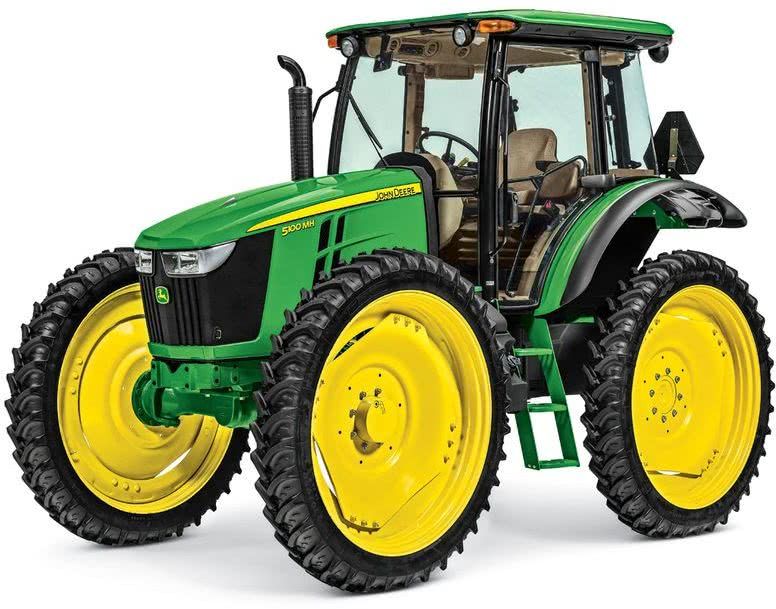

John Deere 5100MH
Browse All John Deere or MFWD Tractor Models
Contents:
Dimensions
| Wheelbase | 90.6 ft in (2301.24 mm) |
| Approximate Shipping Weight (Open-Station; Cab) | "MFWD: Open: 3630 kg 8000 lb Cab:4040 kg 8900 lb" |
Engine
| Number Of Cylinders | 4 |
| Family | FJDXL04.5305 |
| Cylinder Liners | Wet sleeved |
| Rated Power | "At 2200 per ISO 97/68/EC: 74 kW 100 hp" |
| Rated Pto Power | "At 2100 per SAE: 63 kW 85 hp" |
| Pto Torque Rise | At 1600 rpm: 30 percent |
| Displacement | 276 cu in (4.6 L) |
| Aspiration | Turbocharged/Air-to-Air Aftercooled |
| Description | John Deere PowerTech PWL |
Capacities
| Fuel Tank | "Standard: Open: 114 L 30 U.S. gal. Cab: 140 L 37 U.S. gal. Optional: Open: 144 L 38 U.S. gal. Cab: 174 L 46 U.S. gal." |
Transmission
| Clutch, Wet/Dry | Wet |
| Creeper | 16F/16R PowrReverser |
| Reverser | Right hand, mechanical |
| Transmission Type | Standard: 16F/16R PowrReverser with creeper |
Tires
| Wheel Tread Range | "MFWD: 1340-1904 mm 52.8-75.0 in." |
| Turning Radius With Brakes | 12.8 ft in (4 m) |
| Turning Radius Without Brakes | 14.4 ft in (4.4 m) |
| Front | MFWD: 230/95R40 R1 |
| Rear | MFWD: 230/95R40 R1 |
Hydraulic
| Pump Rated Output 1 | 24.7 gal/min (93.5 L/min) |
| Joystick Scv Control | Optional |
| Available Flow At A Single Rear Scv | 70 lb-ft 18.4 gpm |
Operator Station
| Rollover Protective Structure | "Rigid - foldable - telescopic Foldable, 2-postPlatform - flat/straddle FlatGearshift location - console/floor Floor" |
| Db(A) Rating | 80 dBA |
Rear Hitch
| Hitch Draft Control Load Sense Type | Electrohydraulic |
| Hitch Category (Sae Designation) | Category 2; convertible to 1 |
| Remote Control Valves Available | "Standard: 0 Optional: 3" |
| Maximum Lift Capacity Behind Lift Points | "Standard: 2100 kg 4600 lb Optional: 2550 kg 5600 lb" |
| Sensing Type | Lower Link |
Rear Power Take -Off (Pto)
| Engine Rpm (At Rated Pto Speeds) | "540 at 2100 rpm 540E at 1645 rpm" |
| Pto Actuation | Electrohydraulic |
| Rear Power Take -Off (Pto) Type | "Standard: Independent 540/540 Economy Optional: 540/540E/1000" |
Rear Axle
| Final Drive Type | Inboard planetary |
| Differential Controls | Mechanical (pedal) |
| Axle Type | Flanged |
| Brakes,Type And Control | Hydraulic wet disc |
