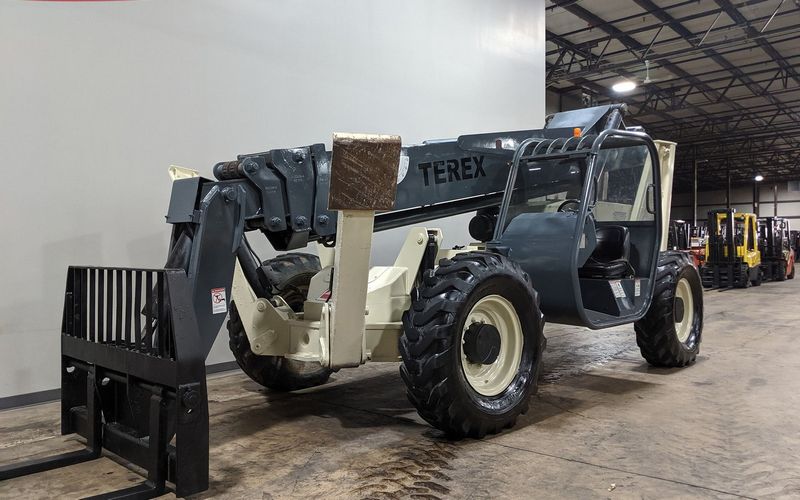

Terex TH1056C
Browse All Terex or Telescopic Forklift Models
Contents:
Dimensions
| Ground Clearance | 1.58 ft in (480 mm) |
| Overall Height | 9.75 ft in (2970 mm) |
| Wheelbase | 11.26 ft in (3430 mm) |
| Overall Length | 27.01 ft in (8230 mm) |
| Overall Width | 8.34 ft in (2540 mm) |
| Turning Radius Outside Tires | 15.16 ft in (4620 mm) |
Engine
| Engine Make | John Deere Turbo-Charged |
| Engine Model | 4045T |
| Gross Power | 125 hp (93.3 kw) |
| Power Measured @ | 2500 rpm |
Operational
| Fuel Capacity | 30 gal (113.6 L) |
| Hydraulic System Fluid Capacity | 48 gal (181.7 L) |
| Tire Size | 1400X24 - 12 Ply |
| Travel Speed | 18.6 mph (29.8 km/h) |
Transmission
| Number Of Forward Gears | 3 |
Weights
| Front Axle Weight | 14936.4 lb (6775 kg) |
| Rear Axle Weight | 16256.9 lb (7374 kg) |
Hydraulic
| Pump Type | Flow on Demand |
Brakes
| Service Brake | Enclosed, Hydralic,Multiplate |
| Parking Brake | Spring Applied/Hydralic |
