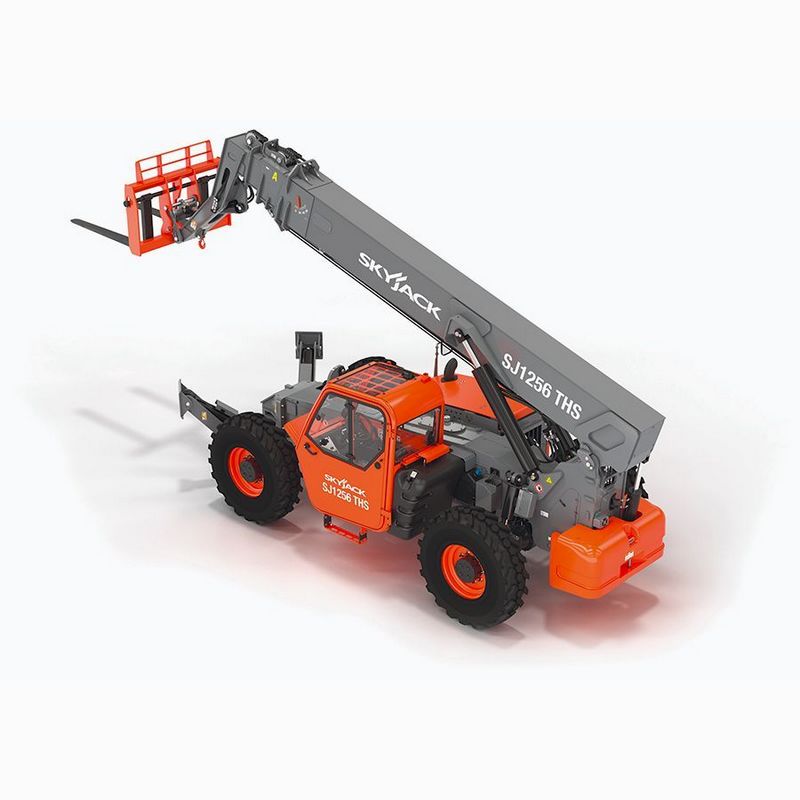

Skyjack SJ1256 THS
Browse All Skyjack or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 23.1 ft in (7040.88 mm) |
| Ground Clearance | 1.59 ft in (482 mm) |
| Overall Height | 8.6 ft in (2621.29 mm) |
| Turning Radius Outside Tires | 14.41 ft in (4390 mm) |
| Overall Width | 8.5 ft in (2590.81 mm) |
Lift
| Max Lift Height | 56.3 ft in (17160.25 mm) |
| Max Forward Reach | 42.6 ft in (12984.48 mm) |
| Max Lift Capacity | 12000 lb (5443.11 kg) |
| Lift Capacity At Max - Reach | 1000 lb (453.6 kg) |
| Lift Capacity At Max - Height | 6000 lb (2721.56 kg) |
Engine
| Emission Tier Level | Tier 4F |
| Engine Make | Deutz |
| Engine Model | TCD 3.6L |
| Gross Power | 107 hp (79.8 kw) |
| Max Torque | 320 lb ft (433.9 Nm) |
Operational
| Operating Weight | 34500 lb (15649 kg) |
| Drawbar Pull | 22500 lb (10205.9 kg) |
| Tire Size | 14 x 24 16PR Grip Lug |
Transmission
| Number Of Forward / Reverse Speeds | 3 |
| Transmission Type | Dana Powershift |
| Max Speed - Forward | 15 mph (24.2 km/h) |
