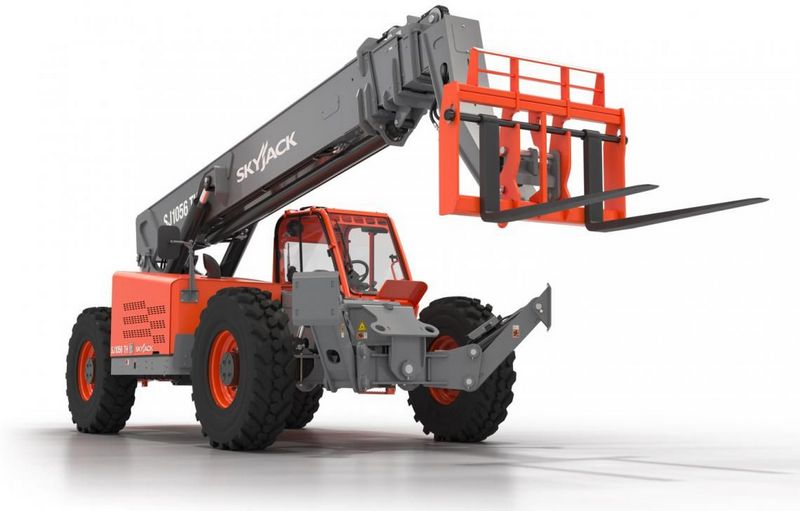

Skyjack SJ1056 TH
Browse All Skyjack or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 22.2 ft in (6766.56 mm) |
| Ground Clearance | 1.59 ft in (483 mm) |
| Overall Height | 8.1 ft in (2468.88 mm) |
| Turning Radius Outside Tires | 12.24 ft in (3730 mm) |
| Overall Width | 8.5 ft in (2590.81 mm) |
Lift
| Max Lift Height | 56.13 ft in (17108.43 mm) |
| Max Forward Reach | 42.6 ft in (12984.48 mm) |
| Max Lift Capacity | 10000 lb (4535.93 kg) |
| Lift Capacity At Max - Reach | 400 lb (181.44 kg) |
| Lift Capacity At Max - Height | 4000 lb (1814.37 kg) |
Engine
| Emission Tier Level | Tier 4F |
| Engine Make | Deutz T |
| Engine Model | TCD 3.6L |
| Gross Power | 74 hp (55.2 kw) |
| Max Torque | 287 lb ft (389.2 Nm) |
Operational
| Operating Weight | 31500 lb (14288.2 kg) |
| Drawbar Pull | 20000 lb (9071.9 kg) |
| Tire Size | 14 x 24 16PR Grip Lug |
Transmission
| Number Of Forward / Reverse Speeds | 3 |
| Transmission Type | Dana Powershift |
| Max Speed - Forward | 15 mph (24.2 km/h) |
