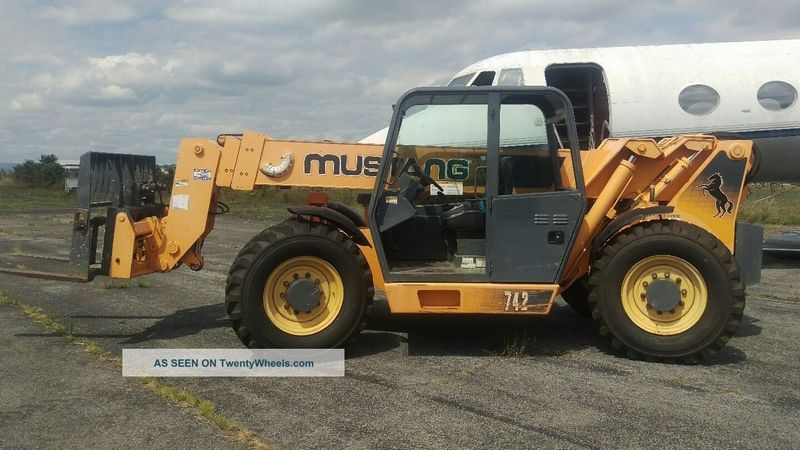

Mustang 742
Browse All Mustang or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 20.02 ft in (6100 mm) |
| Ground Clearance | 15.99 ft in (406 mm) |
| Width Over Tires | 7.88 ft in (2400 mm) |
| Overall Height | 7.55 ft in (2300 mm) |
| Wheelbase | 10.5 ft in (3200 mm) |
| Turning Radius Outside Tires | 12.14 ft in (3700 mm) |
Lift
| Max Lift Height | 42 ft in (12800 mm) |
| Max Forward Reach | 27.24 ft in (8300 mm) |
| Max Load At Max Reach | 1499.15 lb (680 kg) |
| Max Load At Max Height | 6999.68 lb (3175 kg) |
| Max Lift Capacity | 6999.68 lb (3175 kg) |
Engine
| Engine Make | 2240 |
| Engine Model | e 4045T |
| Gross Power | 115.4 hp (86 kw) |
| Displacement | 274.7 cu in (4.5 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 23100.1 lb (10478 kg) |
| Hydraulic System Fluid Capacity | 45 gal (170 L) |
| Tire Size | 13.00x24 |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 21.8 mph (35 km/h) |
Hydraulic
| Pump Type | dual gear |
| Pump Flow Capacity | 43.1 gal/min (163 L/min) |
| Relief Valve Pressure | 3002.3 psi (20700 kPa) |
