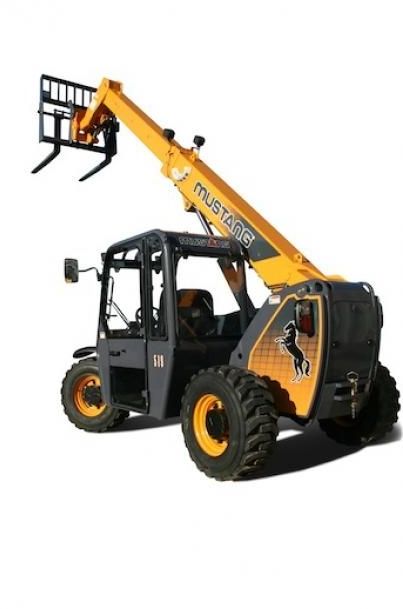

Mustang 519
Browse All Mustang or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 12.33 ft in (3758.19 mm) |
| Ground Clearance | 14 ft in (356 mm) |
| Width Over Tires | 5.92 ft in (1804.42 mm) |
| Overall Height | 6.33 ft in (1929.39 mm) |
| Wheelbase | 7.5 ft in (2286 mm) |
| Turning Radius Outside Tires | 11 ft in (3352.8 mm) |
Lift
| Max Lift Height | 19.08 ft in (5815.59 mm) |
| Max Forward Reach | 11 ft in (3352.8 mm) |
| Max Load At Max Reach | 1850 lb (839 kg) |
| Max Load At Max Height | 3000 lb (1360 kg) |
| Max Lift Capacity | 5500 lb (2495 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | TD2009 L04 |
| Gross Power | 156 hp (116.4 kw) |
| Power Measured @ | 2600 rpm |
| Aspiration | Turbocharged |
| Engine Rpm - Rated | 2200 rpm |
| Cat Diesel Engines | C6.6 Tier 3 |
Operational
| Operating Weight | 10000 lb (4536 kg) |
| Fuel Capacity | 17 gal (64 L) |
| Hydraulic System Fluid Capacity | 18 gal (68 L) |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 15 mph (24 km/h) |
| Max Speed - Reverse | 15 mph (24 km/h) |
Weights
| Operating Weight | 19099 lb (8663.2 kg) |
| Operating Weight* | 19099 lb (8663.2 kg) |
| Counterweight | 1100 lb (499 kg) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 22 gal/min (83 L/min) |
| Relief Valve Pressure | 3350 psi (23097.5 kPa) |
Hydraulic System
| System Pressure | 2250 psi |
| Swing Speed | 8 rpm |
| Flows At Rated Speed | 166, 124, 83 L/min (44, 33, 22 gal/min) |
Operating Specifications
| Knuckleboom Length | 27 ft in (8.3 m) |
| Swing Bearing - Diameter - Od | 43 in (1092.2 mm) |
| Stabilizers (4) - Pad Size | 55.8 cm 66 cm (22 in 26 in) |
Service Refill Capacities
| Fuel | 71 gal (268.8 L) |
| Hydraulic | 35 gal (132.5 L) |
