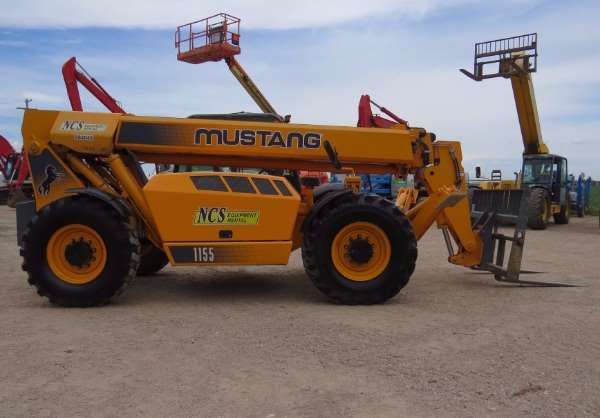

Mustang 1155
Browse All Mustang or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 21.17 ft in (6452.62 mm) |
| Ground Clearance | 16 ft in (406 mm) |
| Width Over Tires | 8.25 ft in (2514.6 mm) |
| Overall Height | 7.92 ft in (2414.02 mm) |
| Wheelbase | 10.67 ft in (3252.22 mm) |
| Turning Radius Outside Tires | 12.17 ft in (3709.42 mm) |
Lift
| Max Lift Height | 55.08 ft in (16788.39 mm) |
| Max Forward Reach | 40.92 ft in (12472.42 mm) |
| Max Load At Max Reach | 2000 lb (907 kg) |
| Max Load At Max Height | 5500 lb (2495 kg) |
| Max Lift Capacity | 11000 lb (4990 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4045T |
| Gross Power | 115 hp (86 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 276 cu in (4.5 L) |
| Aspiration | Turbo |
Operational
| Operating Weight | 28460 lb (12909 kg) |
| Hydraulic System Fluid Capacity | 45 gal (170 L) |
| Tire Size | 14.00 x 24 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 22.8 mph (37 km/h) |
Hydraulic
| Pump Type | Dual Gear |
| Pump Flow Capacity | 43 gal/min (163 L/min) |
| Relief Valve Pressure | 3000 psi (20684.3 kPa) |
