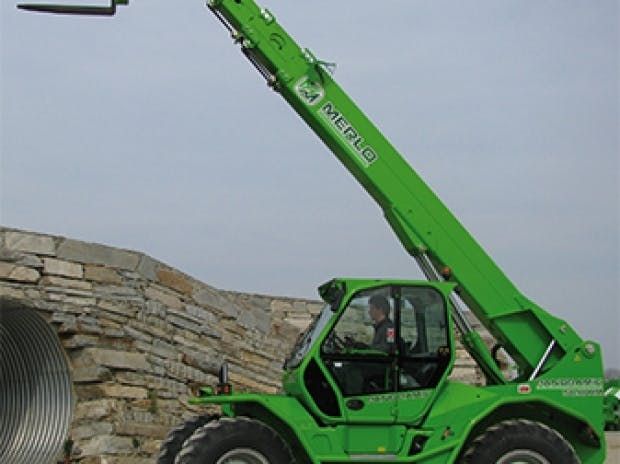

Merlo P 45.18 HM
Browse All Merlo or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 20.12 ft in (6130 mm) |
| Ground Clearance | 1.48 ft in (450 mm) |
| Width Over Tires | 7.88 ft in (2400 mm) |
| Overall Height | 9.36 ft in (2850 mm) |
| Wheelbase | 10.63 ft in (3240 mm) |
| Turning Radius Outside Tires | 14.11 ft in (4300 mm) |
Lift
| Max Lift Height | 58.4 ft in (17800 mm) |
| Max Forward Reach | 43.31 ft in (13200 mm) |
| Max Load At Max Reach | 2204.63 lb (1000 kg) |
| Max Load At Max Height | 5070.64 lb (2300 kg) |
| Max Lift Capacity | 9920.81 lb (4500 kg) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 0 |
| Gross Power | 145 hp (108.2 kw) |
| Power Measured @ | 2300 rpm |
| Aspiration | turbocharged intercooler |
Operational
| Operating Weight | 33951.2 lb (15400 kg) |
| Fuel Capacity | 48.9 gal (185 L) |
| Hydraulic System Fluid Capacity | 47.6 gal (180 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Tire Size | 17.5-25 22PR |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
Hydraulic
| Pump Type | load sensing |
| Pump Flow Capacity | 36.5 gal/min (138 L/min) |
| Relief Valve Pressure | 3335.9 psi (23000 kPa) |
