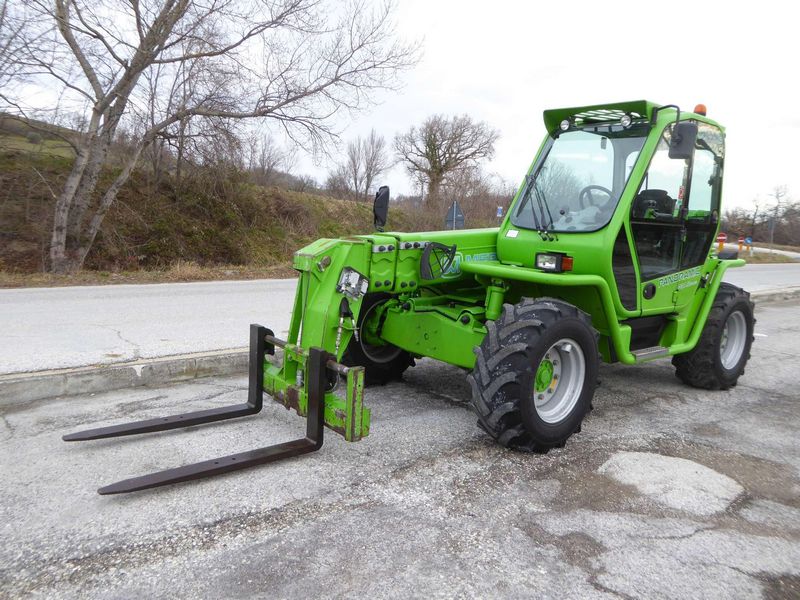

Merlo P 37.12 Plus
Browse All Merlo or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 15.92 ft in (4850 mm) |
| Ground Clearance | 1.58 ft in (480 mm) |
| Width Over Tires | 7.29 ft in (2220 mm) |
| Overall Height | 8.01 ft in (2440 mm) |
| Wheelbase | 9.03 ft in (2750 mm) |
| Turning Radius Outside Tires | 12.87 ft in (3920 mm) |
Lift
| Max Lift Height | 37.73 ft in (11500 mm) |
| Max Forward Reach | 24.94 ft in (7600 mm) |
| Total Unladen Mass Without Forks | 18518.83 lb (8400 kg) |
| Max Load At Max Reach | 1322.78 lb (600 kg) |
| Max Load At Max Height | 4409.25 lb (2000 kg) |
| Max Lift Capacity | 8157.11 lb (3700 kg) |
Engine
| Emission Tier Level | Tier 4 |
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Gross Power | 100.6 hp (75 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 219.7 cu in (3.6 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 19180.3 lb (8700 kg) |
| Fuel Capacity | 41 gal (155 L) |
| Hydraulic System Fluid Capacity | 27.8 gal (105 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Tire Size | 400/70-20 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
Hydraulic
| Pump Type | load sensing |
| Pump Flow Capacity | 28.6 gal/min (108 L/min) |
| Relief Valve Pressure | 3045.8 psi (21000 kPa) |
