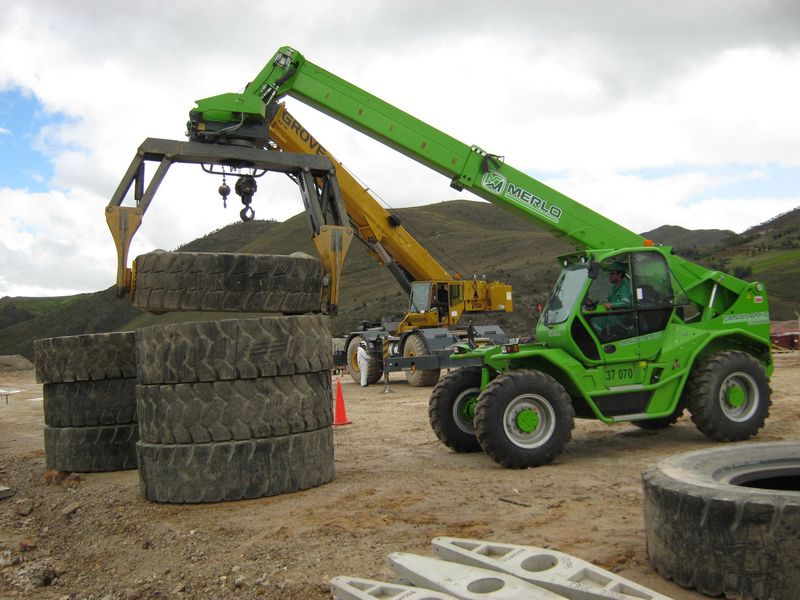

Merlo P 120.10 HM
Browse All Merlo or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 18.84 ft in (5740 mm) |
| Ground Clearance | 1.48 ft in (450 mm) |
| Width Over Tires | 7.88 ft in (2400 mm) |
| Overall Height | 9.36 ft in (2850 mm) |
| Wheelbase | 10.63 ft in (3240 mm) |
| Turning Radius Outside Tires | 14.11 ft in (4300 mm) |
Lift
| Max Lift Height | 32.16 ft in (9800 mm) |
| Total Unladen Mass Without Forks | 34502.35 lb (15650 kg) |
| Total Unladen Mass With Forks | 34502.35 lb (15650 kg) |
| Max Lift Capacity | 26455.47 lb (12000 kg) |
Engine
| Emission Tier Level | 4 |
| Gross Power | 176 hp (131.3 kw) |
Operational
| Max Speed | 24.9 mph (40 km/h) |
| Gearbox | CVTronic |
Transmission
| Max Speed - Forward | 24.9 mph (40 km/h) |
Hydraulic
| Hydraulic Load-Sensing Pump | 30.4 gal/min (115 L/min) |
