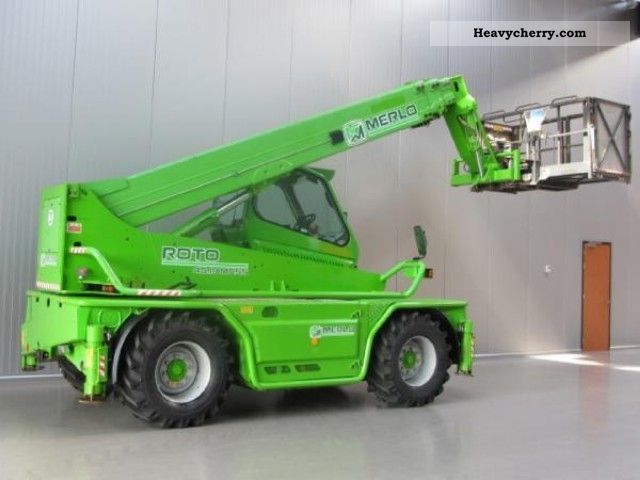

Merlo 45.19
Browse All Merlo or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 19.94 ft in (6075 mm) |
| Ground Clearance | 1.42 ft in (430 mm) |
| Width Over Tires | 7.88 ft in (2400 mm) |
| Overall Height | 9.68 ft in (2950 mm) |
| Wheelbase | 9.75 ft in (2970 mm) |
| Turning Radius Outside Tires | 13.29 ft in (4050 mm) |
Lift
| Max Lift Height | 61.36 ft in (18700 mm) |
| Total Unladen Mass With Forks | 32297.72 lb (14650 kg) |
| Max Lift Capacity | 9920.81 lb (4500 kg) |
Engine
| Emission Tier Level | 4 |
| Gross Power | 119.4 hp (89 kw) |
Operational
| Turntable Rotation | 600 degrees |
| Operating Voltage | 12 V |
| Max Speed | 15.6 mph (25 km/h) |
Hydraulic
| Hydraulic Load-Sensing Pump | 30.4 gal/min (115 L/min) |
